Parking Assist Distance Sensor: Service and Repair

Parking Aid Sensor









Removal

1. Remove the rear bumper. For additional information, refer to Bumpers Service and Repair.

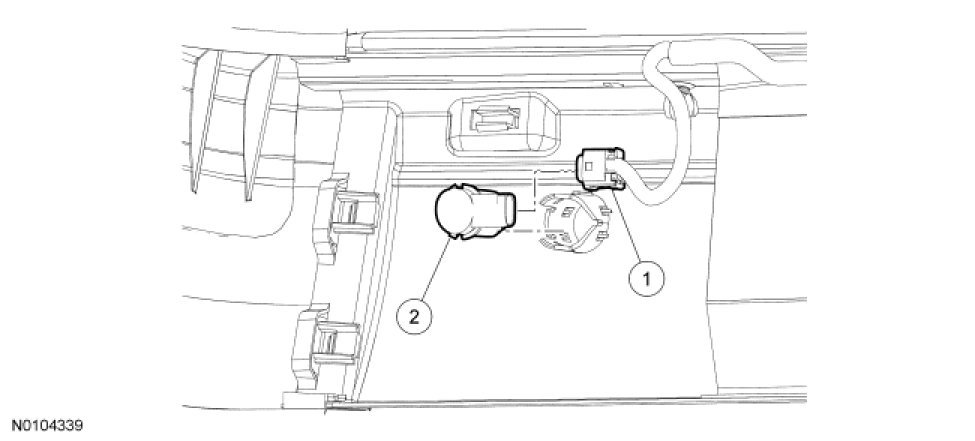

2. Disconnect the electrical connector.

3. With a suitable tool (such as a flat-bladed screwdriver), gently pry the retaining tabs to remove the parking aid sensor(s).
- Remove the parking aid sensor(s) from the rear bumper.

4. To install, reverse the removal procedure.

5. After installing the sensor(s), use the scan tool to verify that the parking aid sensor PIDs read no object present, 255 cm (8.4 ft). If the parking aid sensor does not respond correctly, refer to Parking Aid Special Tool(s) Used With Diagnostics in the Diagnosis and Testing potion.
