Automatic Transaxle/Transmission - 4F27E

Diagnostic Trouble Code (DTC) Charts

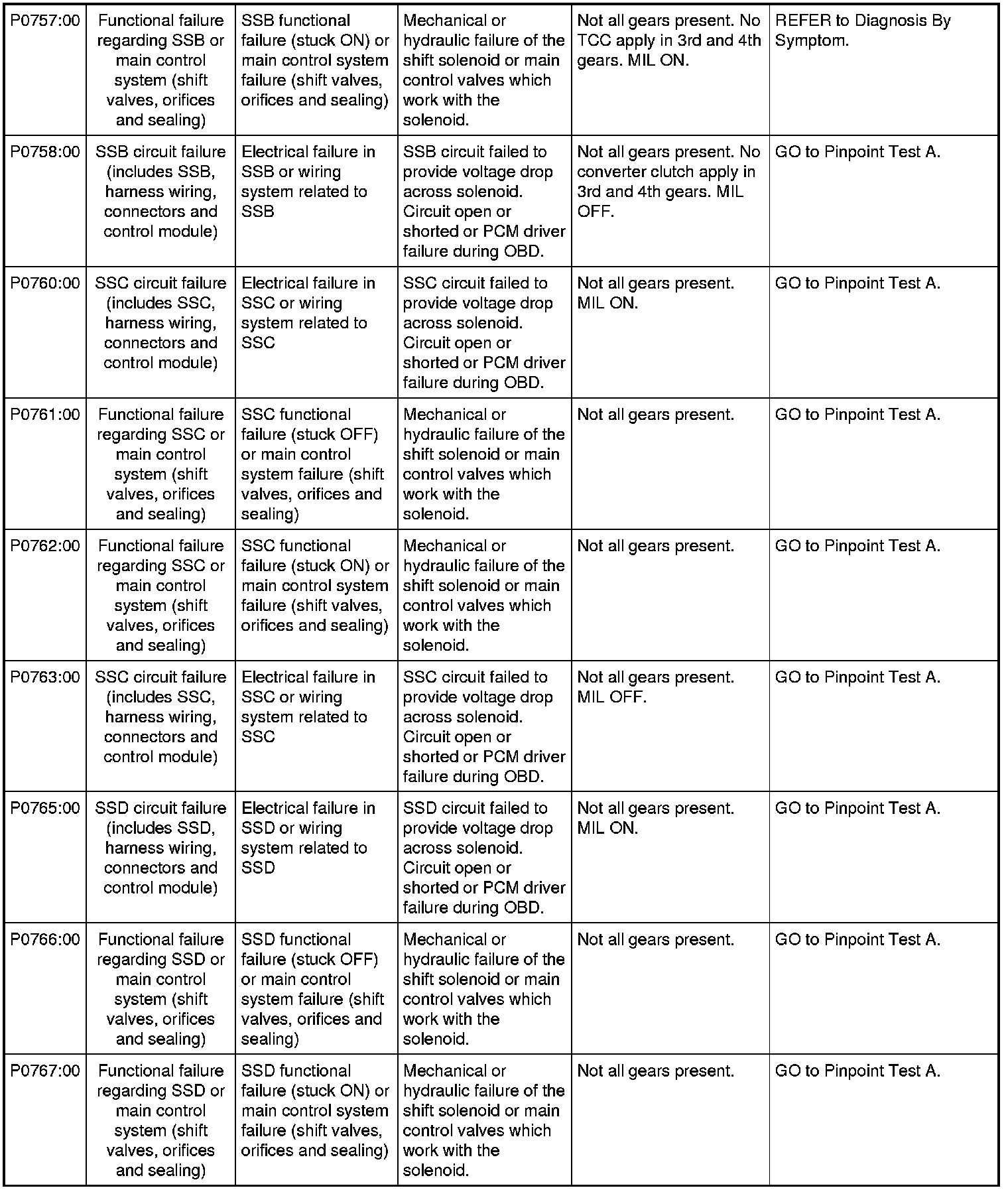

DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure type code. The failure type code provides information about specific fault conditions such as opens or shorts to ground. Continuous Memory Diagnostic Trouble Codes (CMDTCs) have an additional 2-character DTC status code suffix to assist in determining DTC history.
