Halogen Headlamps

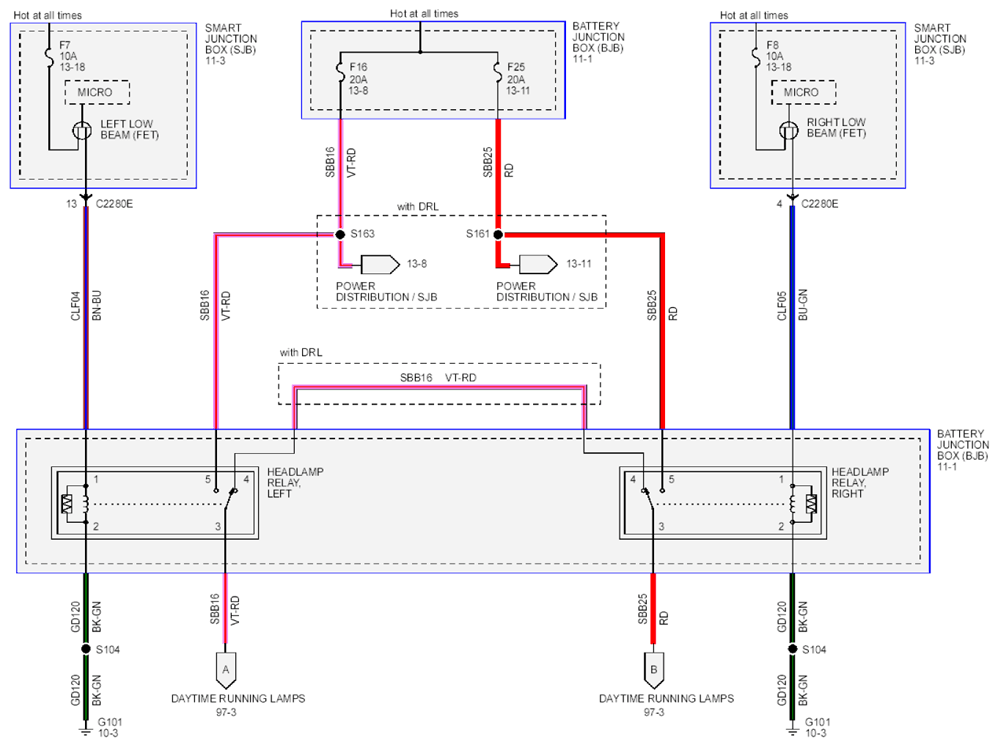

Fig 1: Halogen Headlamps Circuit Diagram (1 Of 3)
G07882278Courtesy of FORD MOTOR CO.

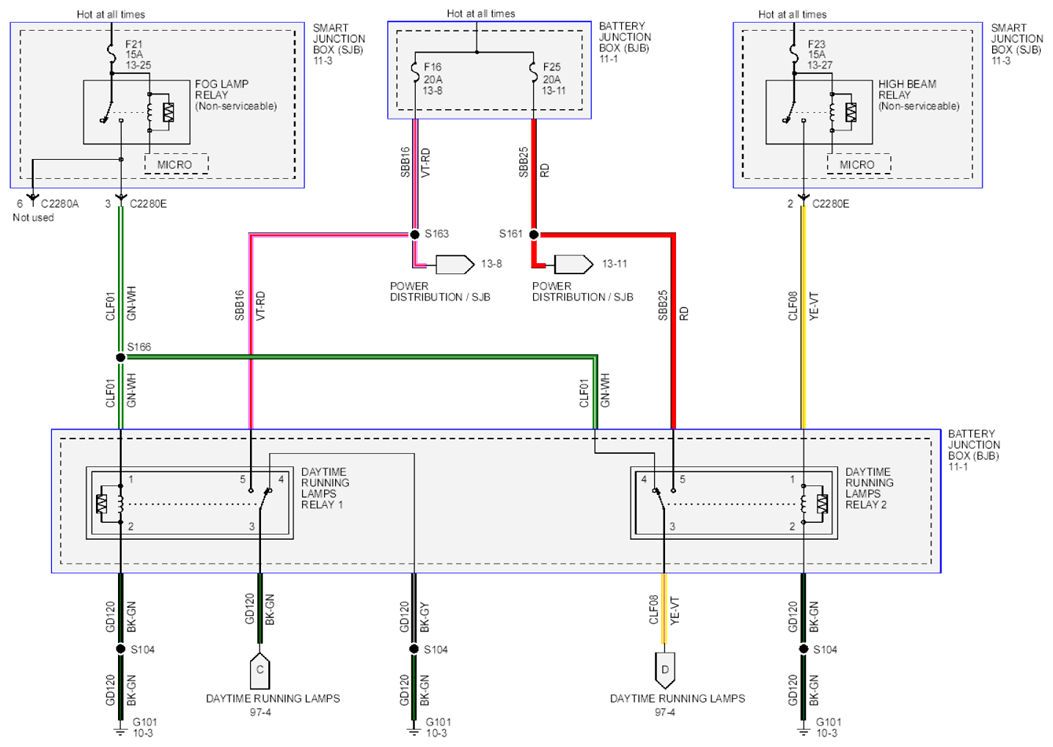

Fig 2: Halogen Headlamps Circuit Diagram (2 Of 3)
G07882279Courtesy of FORD MOTOR CO.

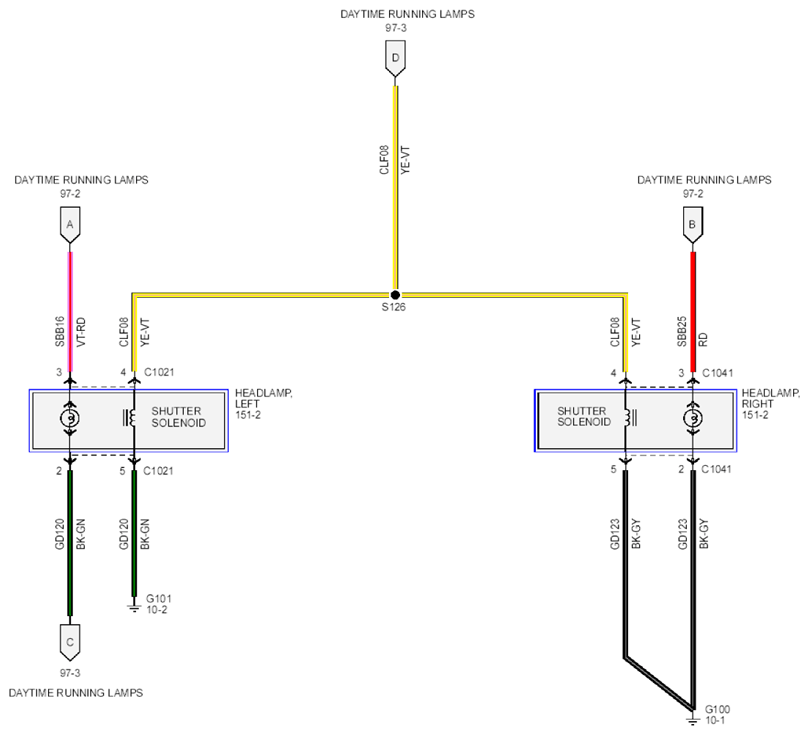

Fig 3: Halogen Headlamps Circuit Diagram (3 Of 3)
G07882280Courtesy of FORD MOTOR CO.
