Wiring Harness Overview: G100

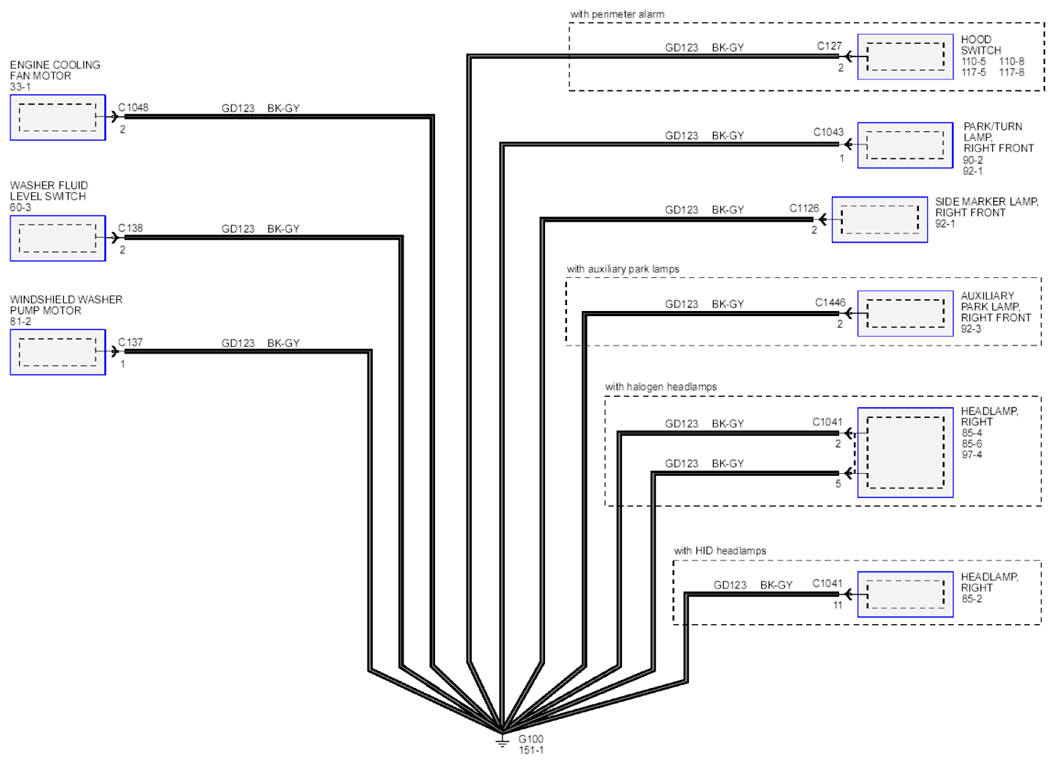

Fig 1: Ground Circuit Diagram - G100

G07882099

Courtesy of FORD MOTOR CO.
