Power Mirrors
>>
With Auto-Dimming Interior Mirror W/O Microphone
With Auto-Dimming Interior Mirror W/O Microphone

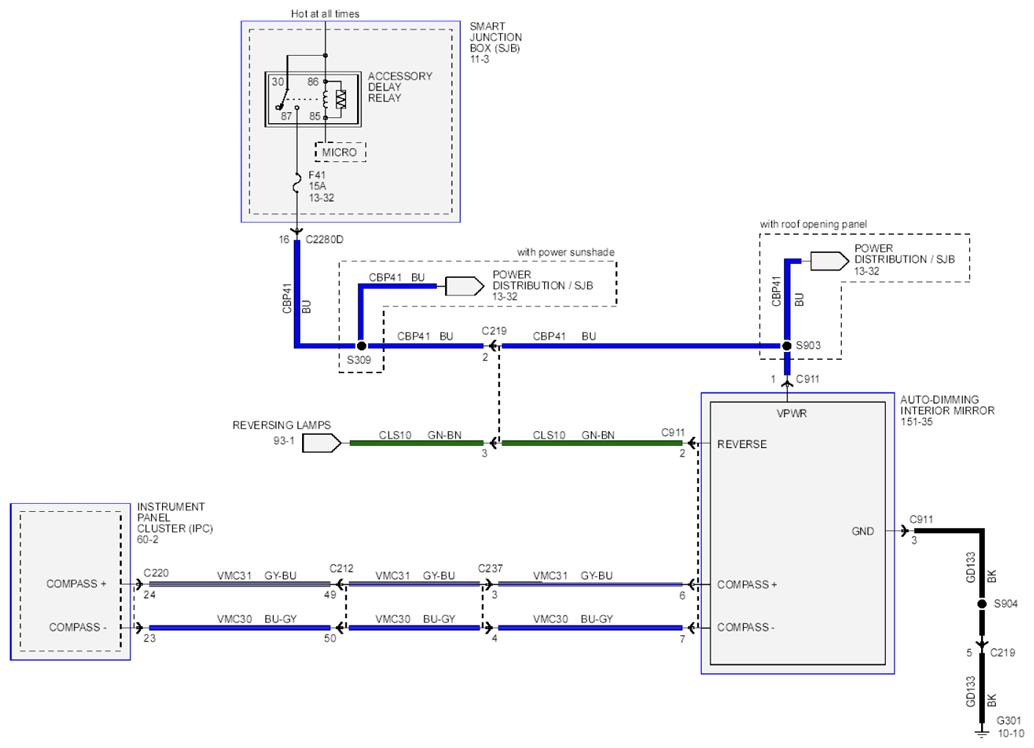

Fig 1: Power Mirrors Circuit Diagram - With Auto-Dimming Interior Mirror W/O Microphone
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
