Luggage Compartment
>>
Without IA
Without IA

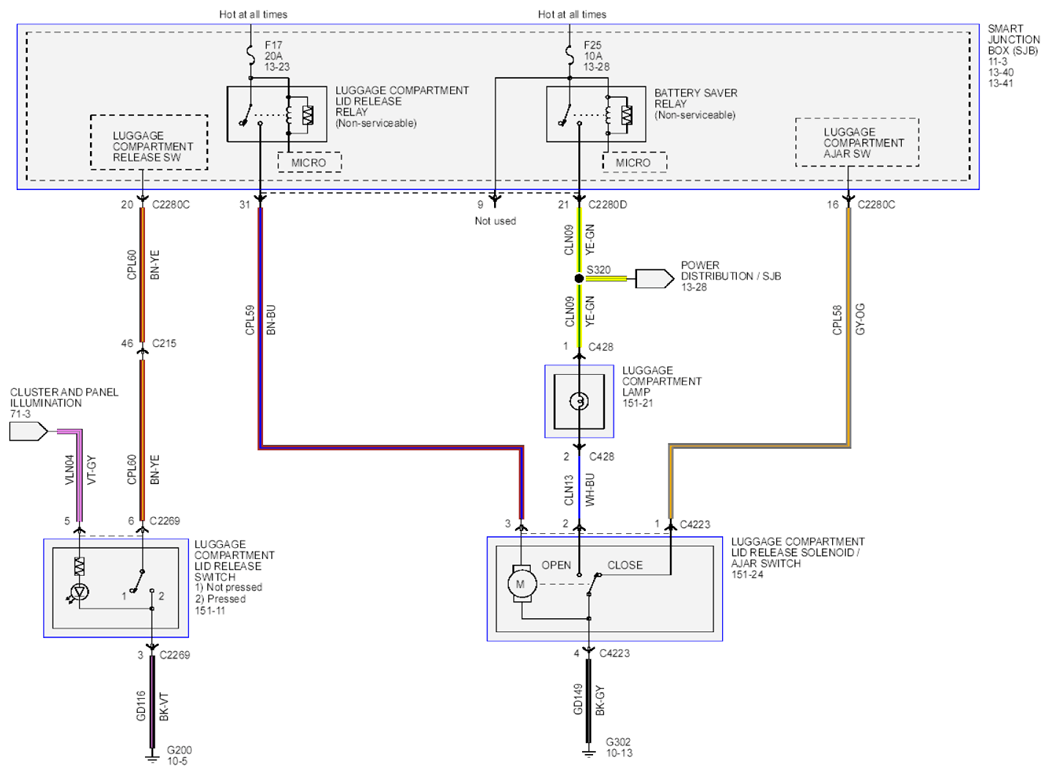

Fig 1: Luggage Compartment Circuit Diagram (Without IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
