With A

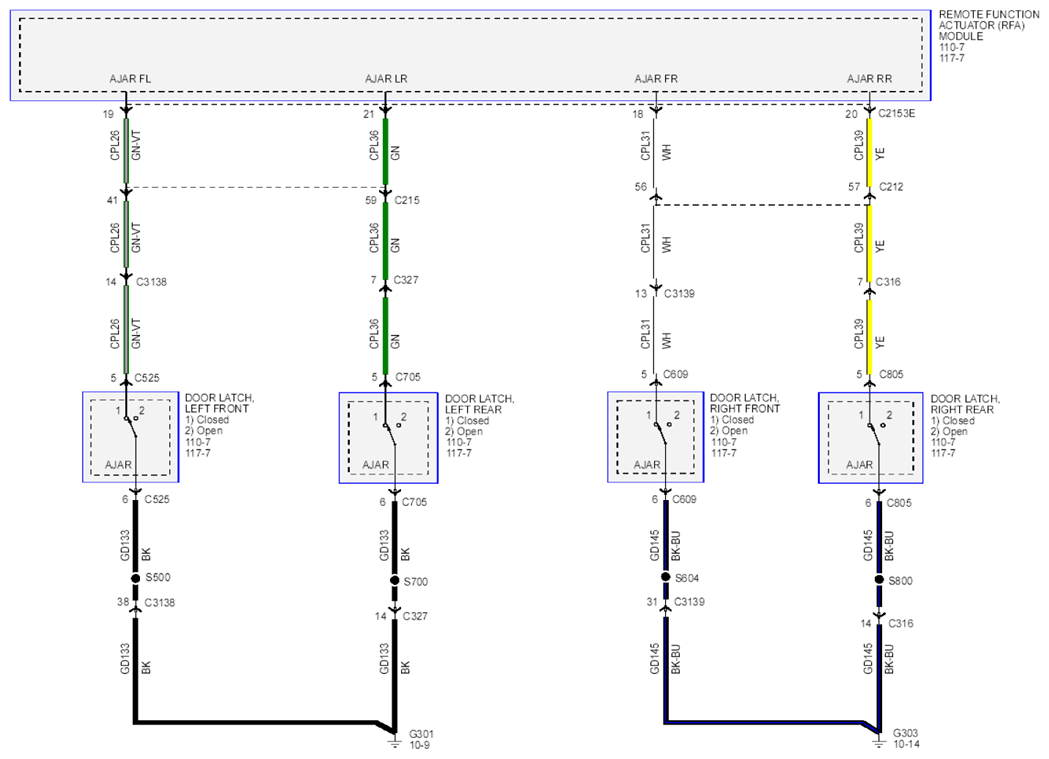

Fig 1: Door Ajar Circuit Diagram - With IA (1 Of 2)

G07882261

Courtesy of FORD MOTOR CO.

Fig 2: Door Ajar Circuit Diagram - With IA (2 Of 2)

G07882262

Courtesy of FORD MOTOR CO.
