With Adaptive Cruise

Fig 1: Cruise Control Circuit Diagram - With Adaptive Cruise (1 Of 2)
G07882204Courtesy of FORD MOTOR CO.

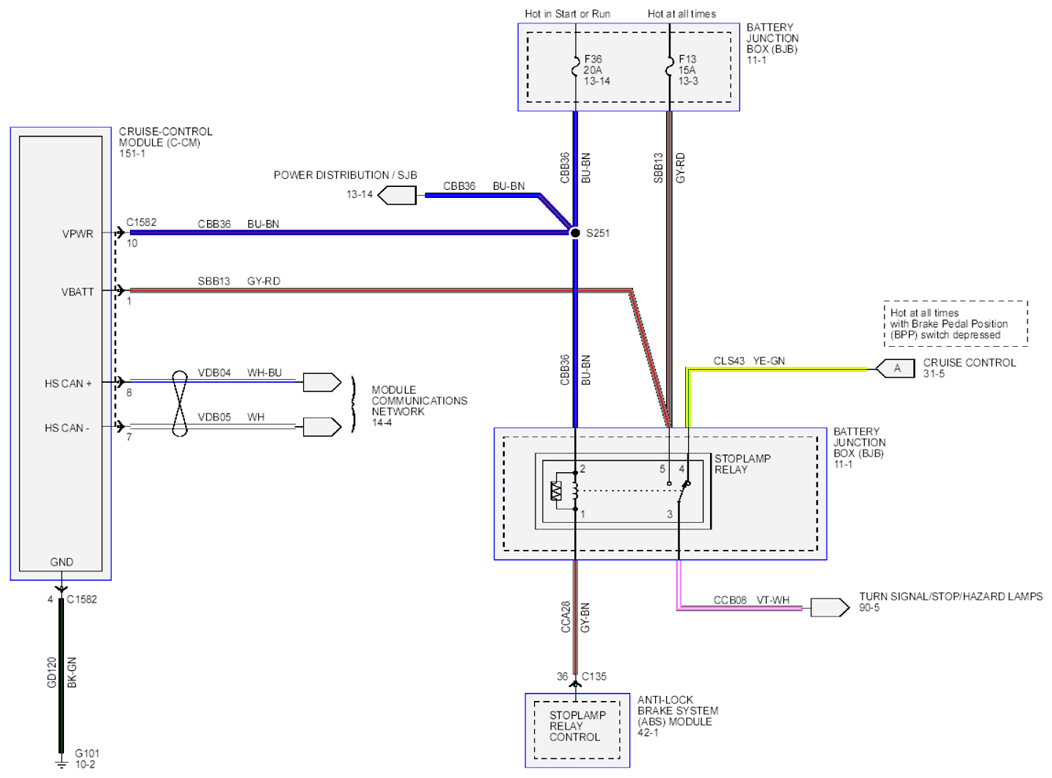

Fig 2: Cruise Control Circuit Diagram - With Adaptive Cruise (2 Of 2)
G07882205Courtesy of FORD MOTOR CO.
