6-Way Power Seat Without Memory - Driver

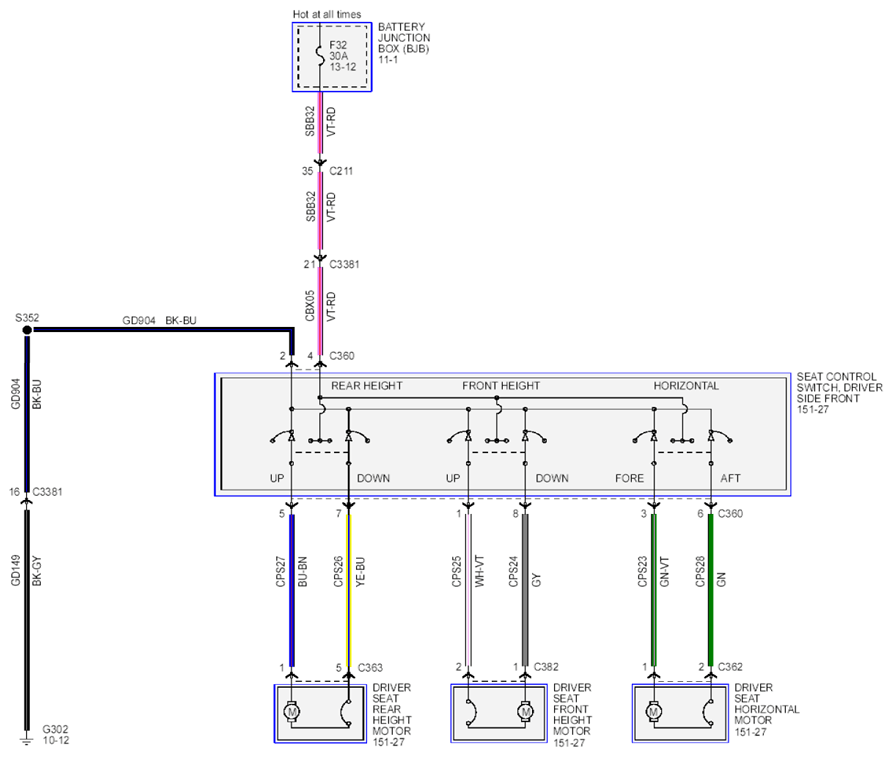

Fig 1: Power Seats Circuit Diagram - 6-Way Power Seat Without Memory - Driver (1 Of 3)
G07882324Courtesy of FORD MOTOR CO.

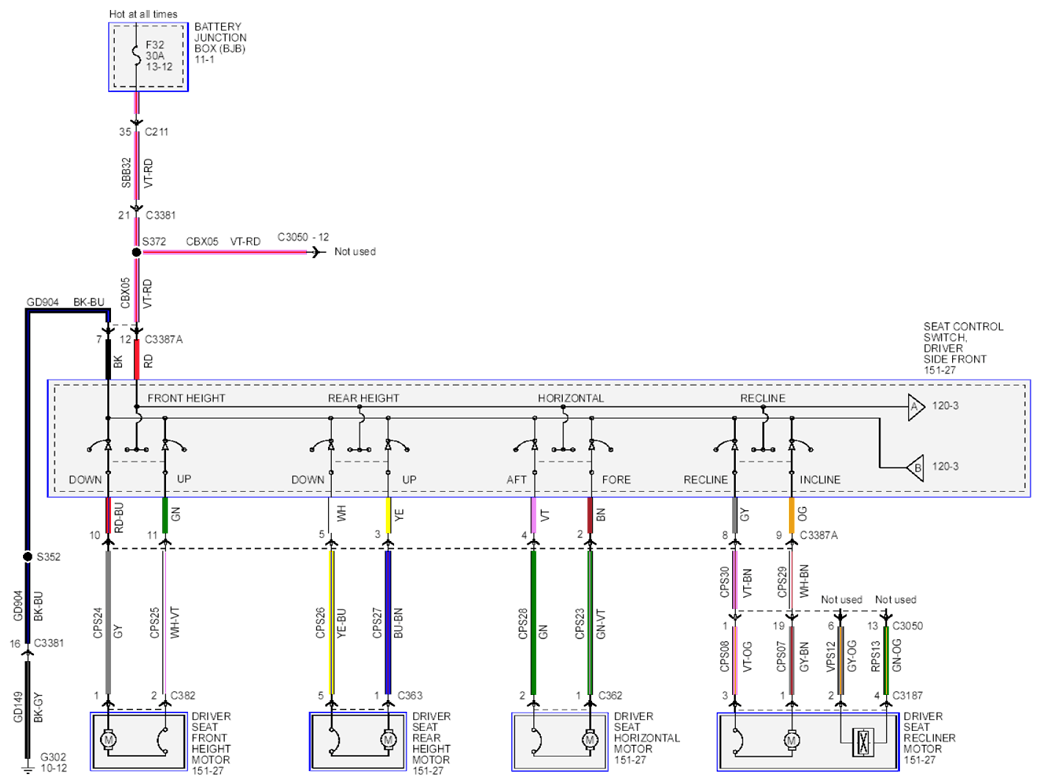

Fig 2: Power Seats Circuit Diagram - 6-Way Power Seat Without Memory - Driver (2 Of 3)
G07882325Courtesy of FORD MOTOR CO.

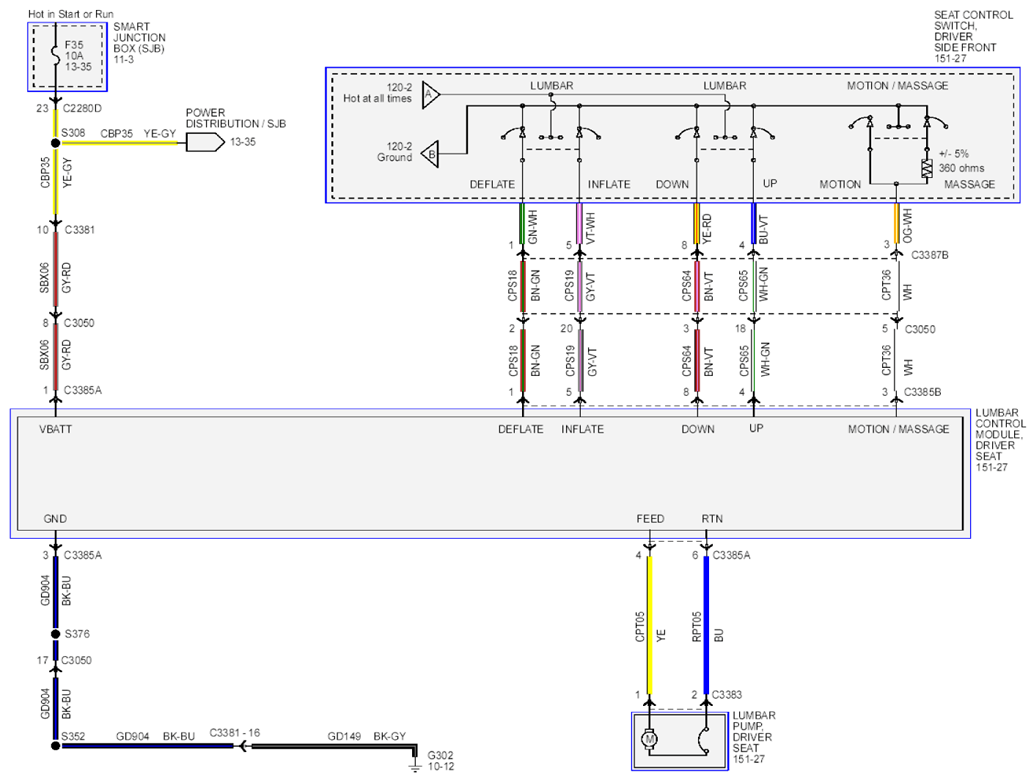

Fig 3: Power Seats Circuit Diagram - 6-Way Power Seat Without Memory - Driver (3 Of 3)
G07882326Courtesy of FORD MOTOR CO.
