Power Distribution_SJB
>>
F47, F48 - 3.5L GTDI
F47, F48 - 3.5L GTDI

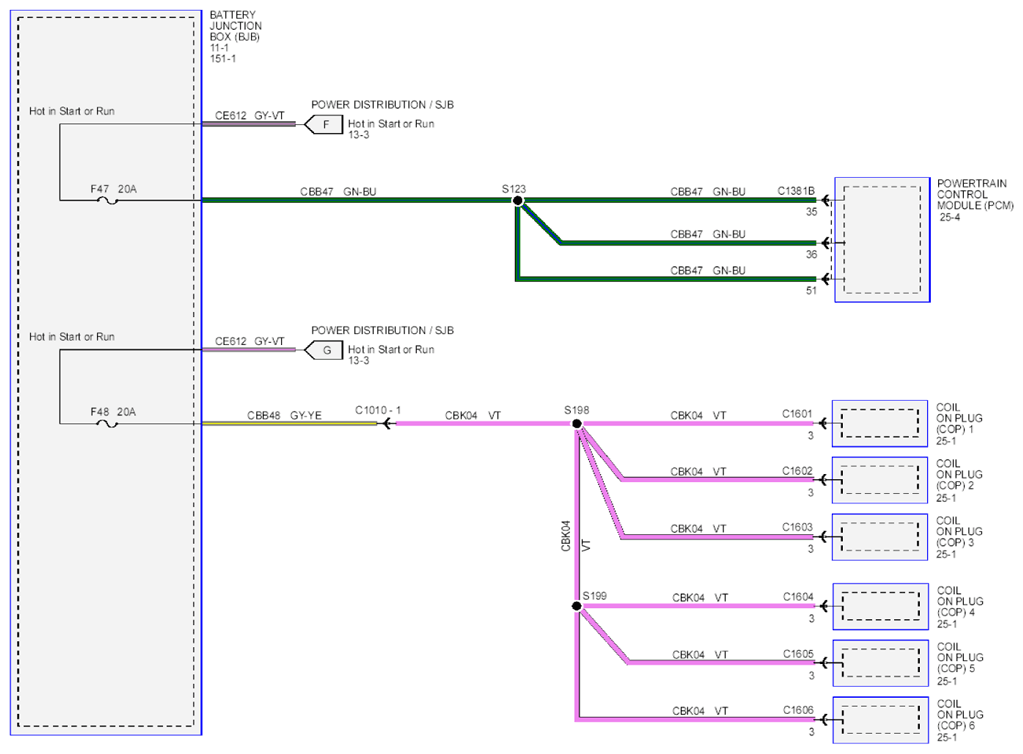

Fig 1: Power Distribution Circuit Diagram - F47, F48 - 3.5L GTDI
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
