Power Distribution_SJB
>>
F29, F30, F31, F32, F33, F34
F29, F30, F31, F32, F33, F34

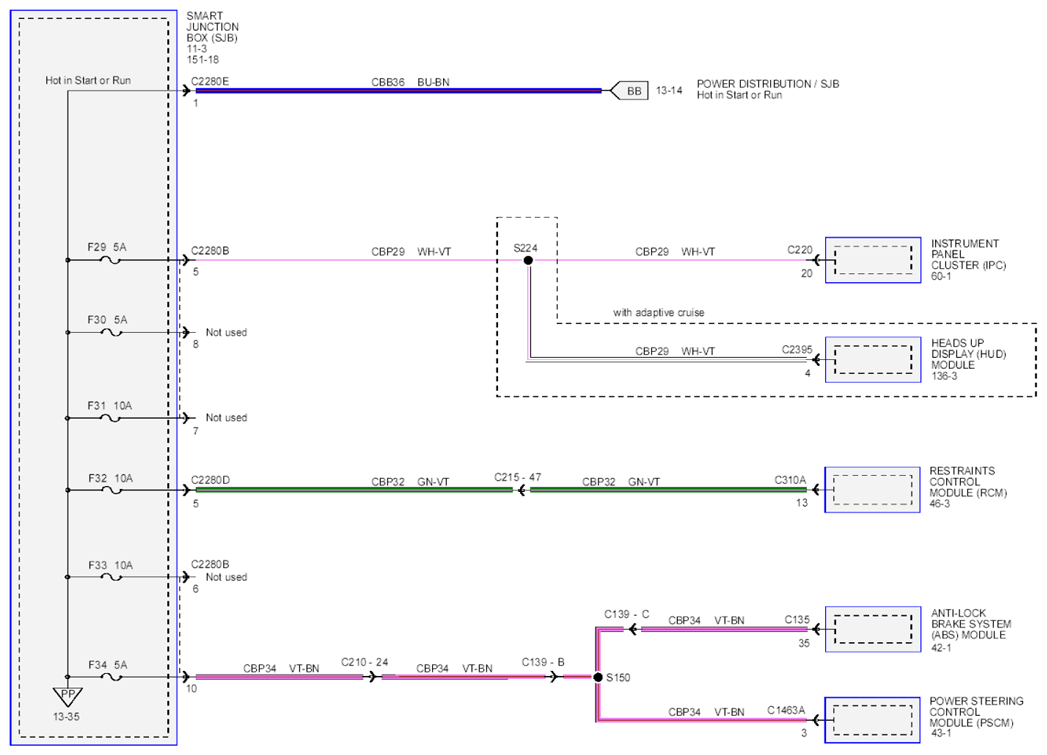

Fig 1: Power Distribution Circuit Diagram - F29, F30, F31, F32, F33, F34
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
