Taurus SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution_SJB
>>
F26, F27, F38, F39, F40
F26, F27, F38, F39, F40

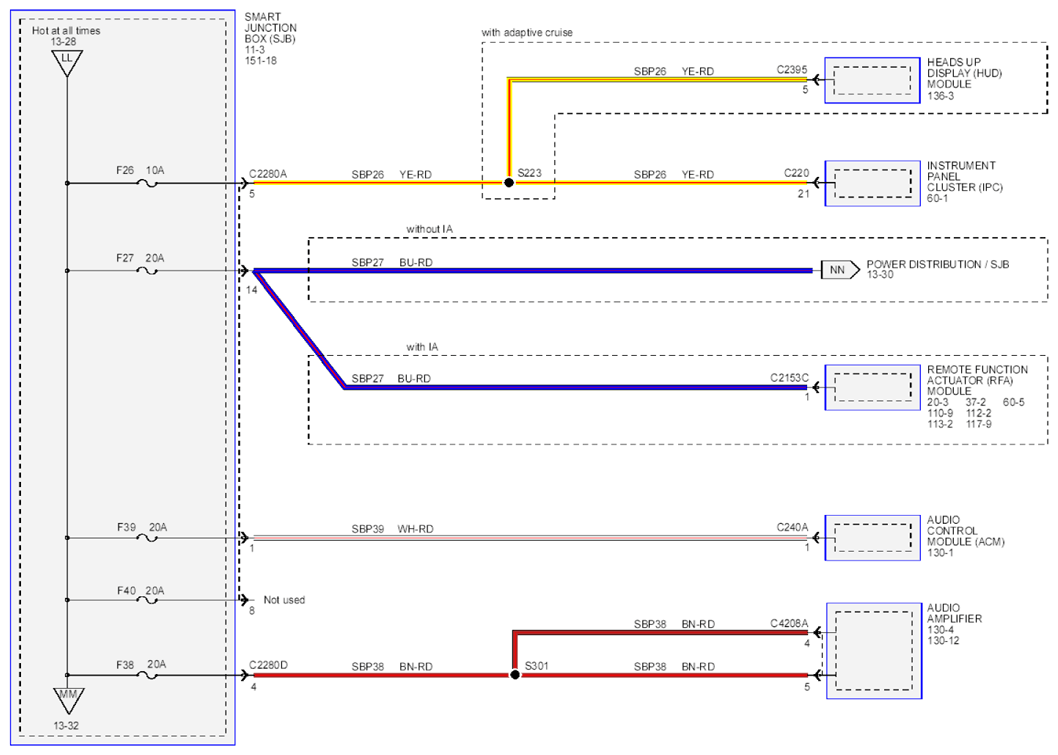

Fig 1: Power Distribution Circuit Diagram - F26, F27, F38, F39, F40
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
