Taurus SEL, FWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Instrument Cluster
Instrument Cluster

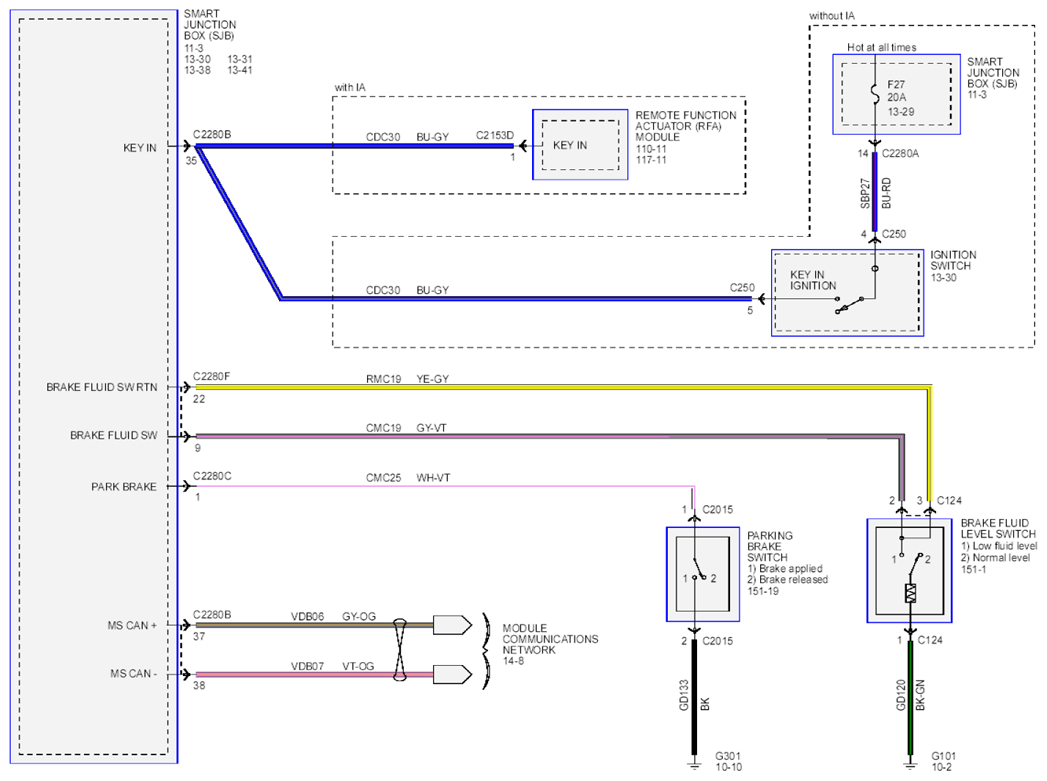

Fig 1: Instrument Cluster Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

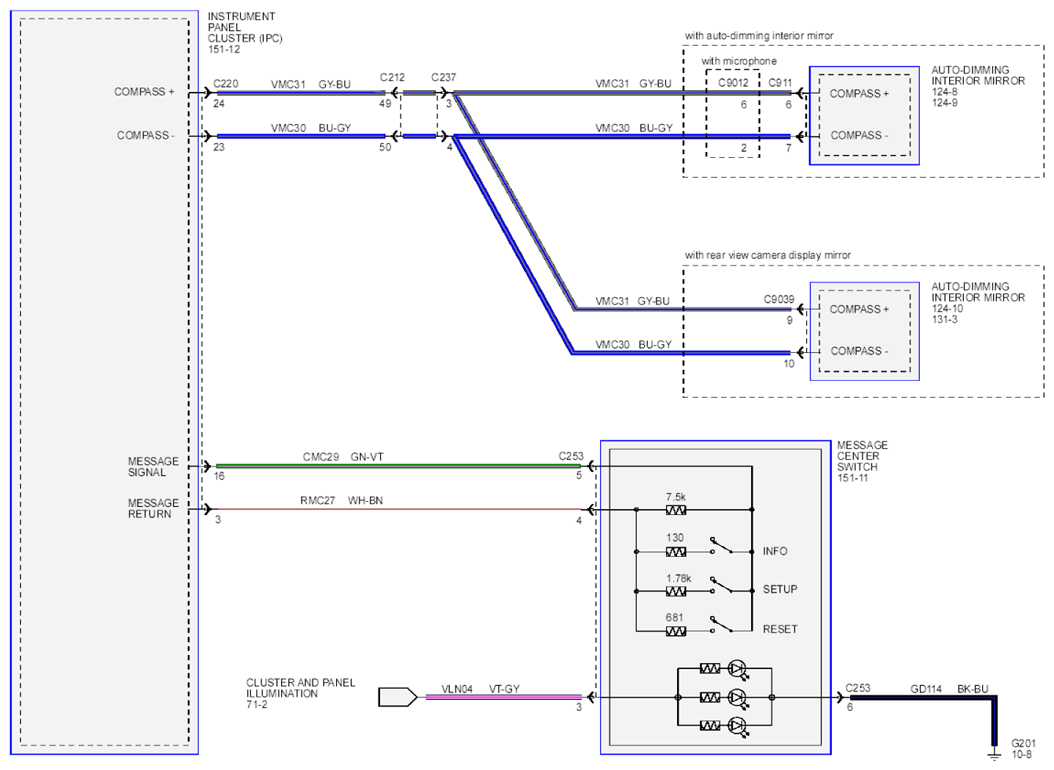

Fig 2: Instrument Cluster Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

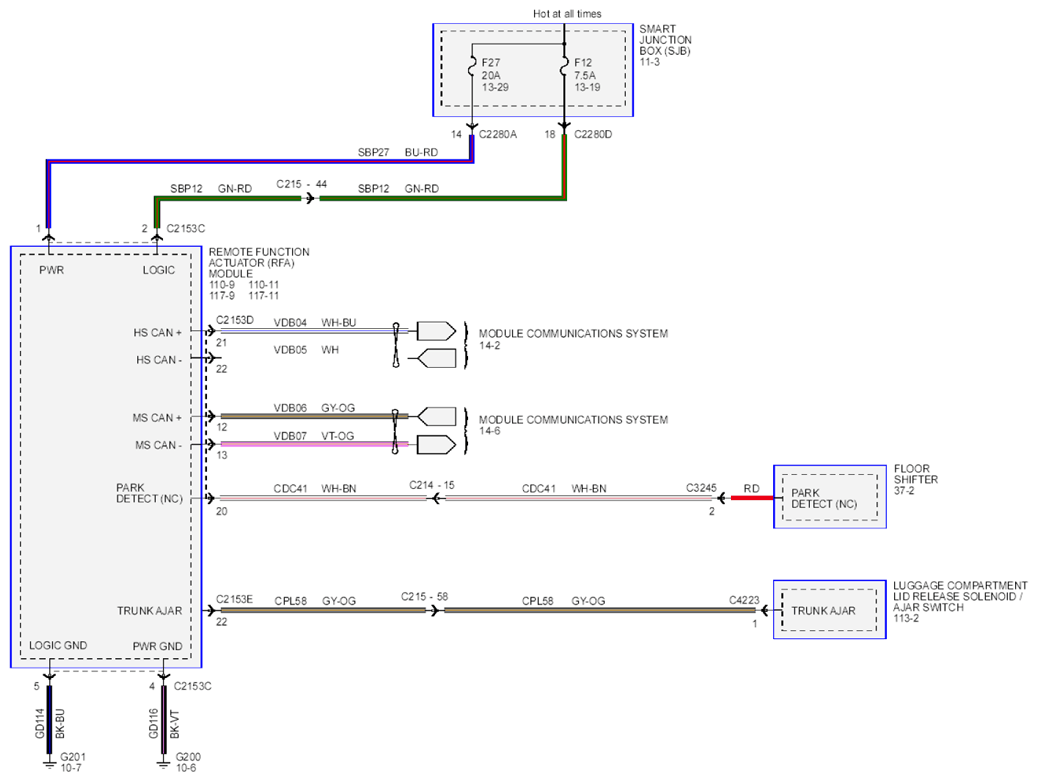

Fig 3: Instrument Cluster Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

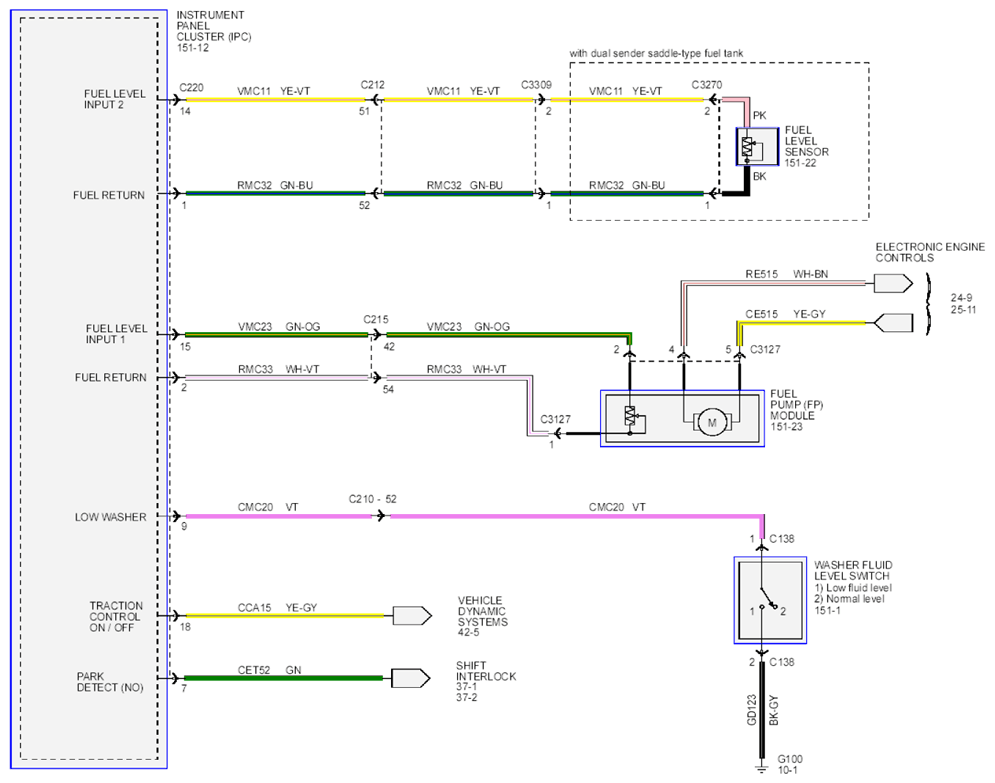

Fig 4: Instrument Cluster Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

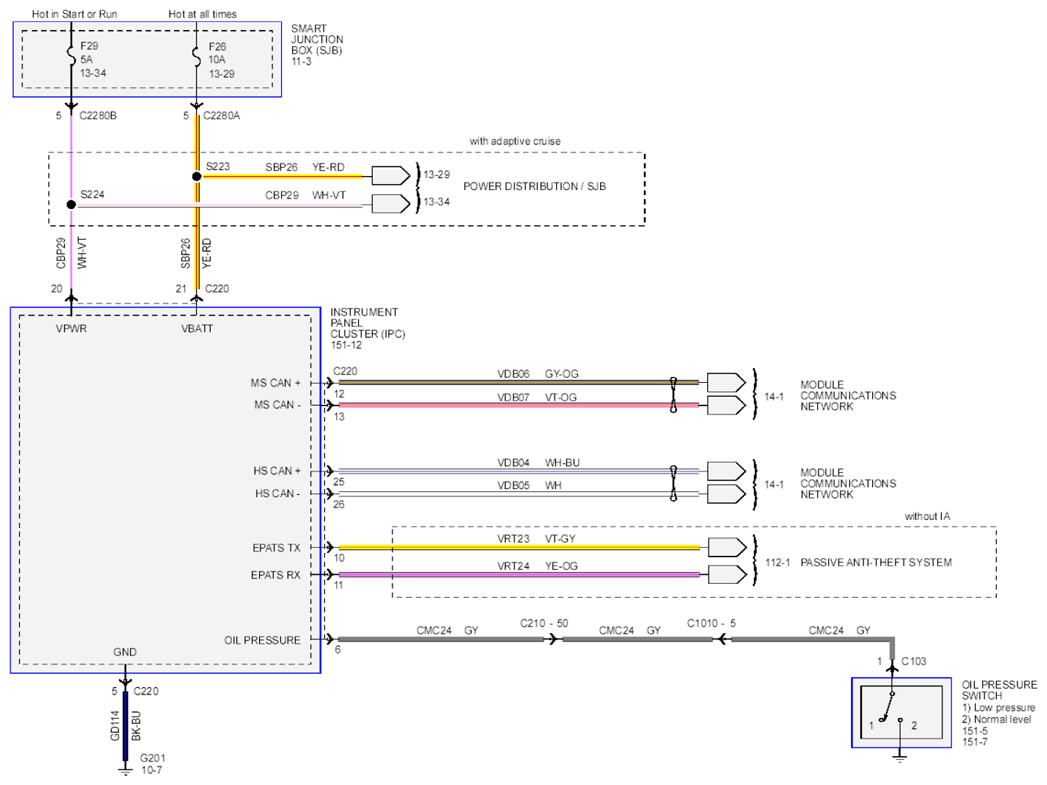

Fig 5: Instrument Cluster Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
