Turbocharger Bypass Valve Connector - C1584

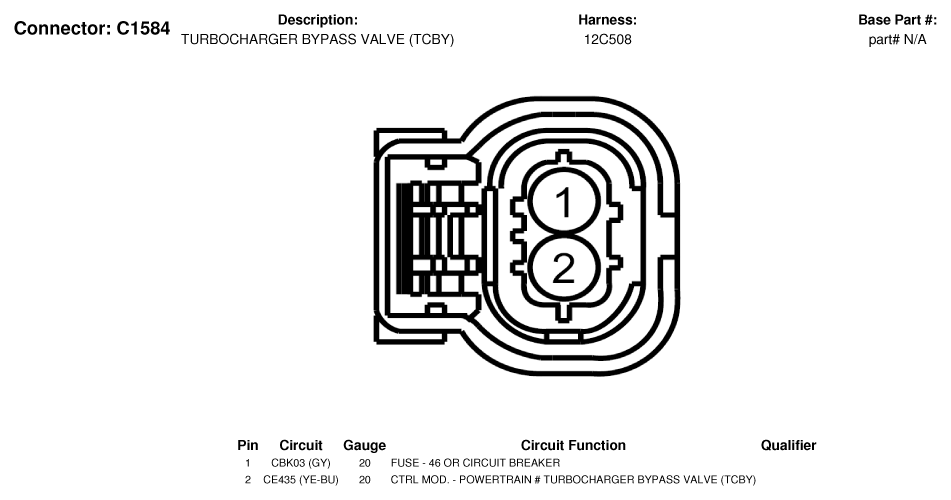

Fig 1: Turbocharger Bypass Valve Connector End View (C1584)

G07340095

Courtesy of FORD MOTOR CO.
