Interior Lamps
>>
Without IA
Without IA

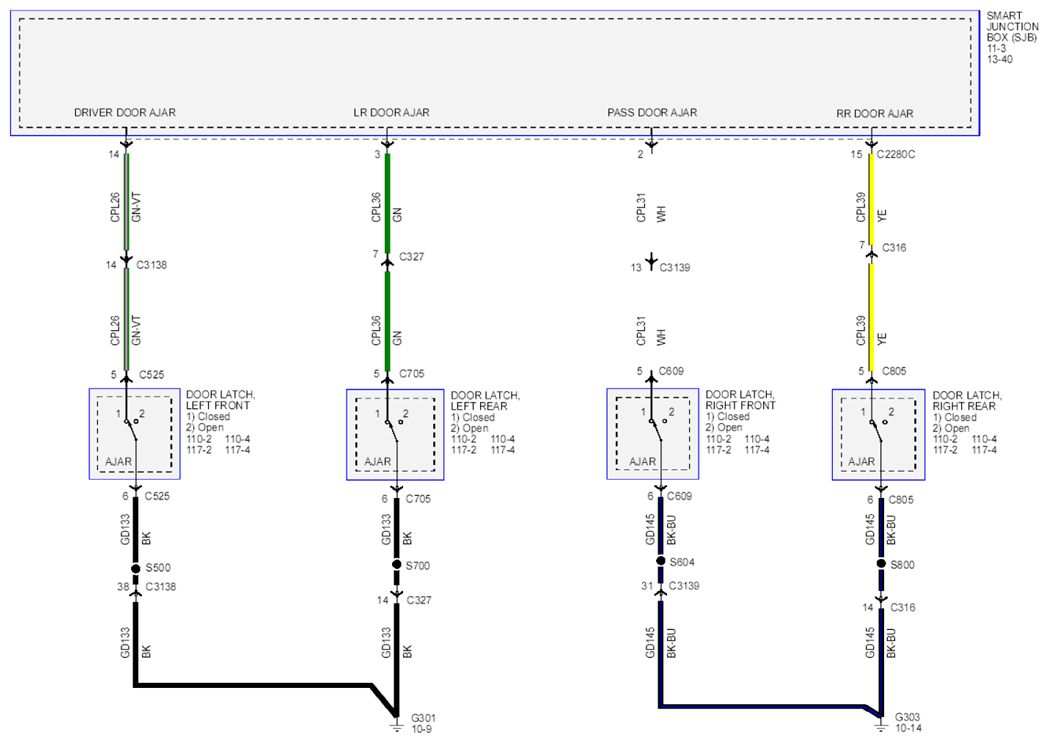

Fig 1: Door Ajar Circuit Diagram (Without IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
