Cluster and Panel Illumination

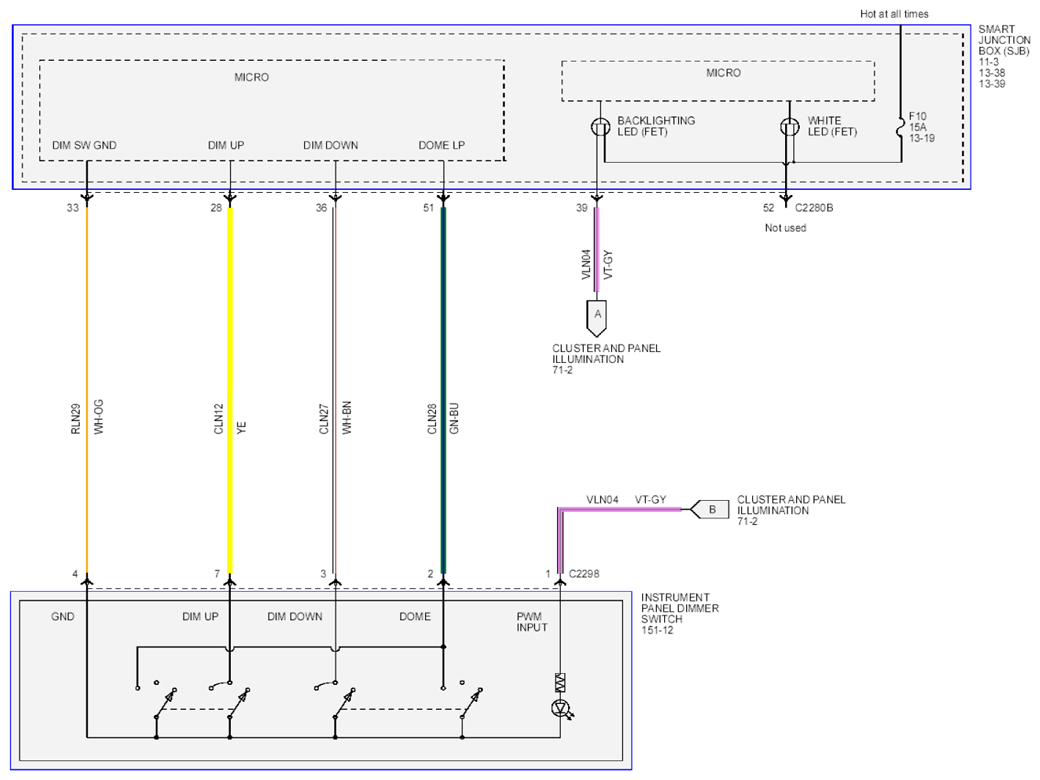

Fig 1: Cluster And Panel Illumination Circuit Diagram (1 Of 4)
G07882241Courtesy of FORD MOTOR CO.

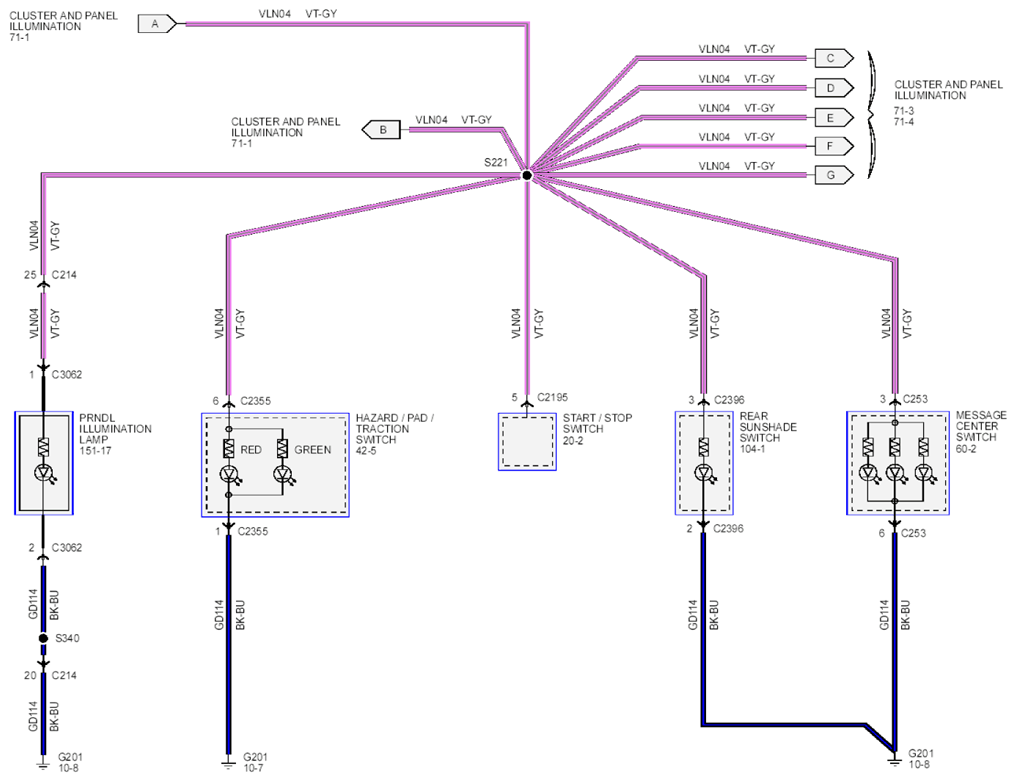

Fig 2: Cluster And Panel Illumination Circuit Diagram (2 Of 4)
G07882242Courtesy of FORD MOTOR CO.

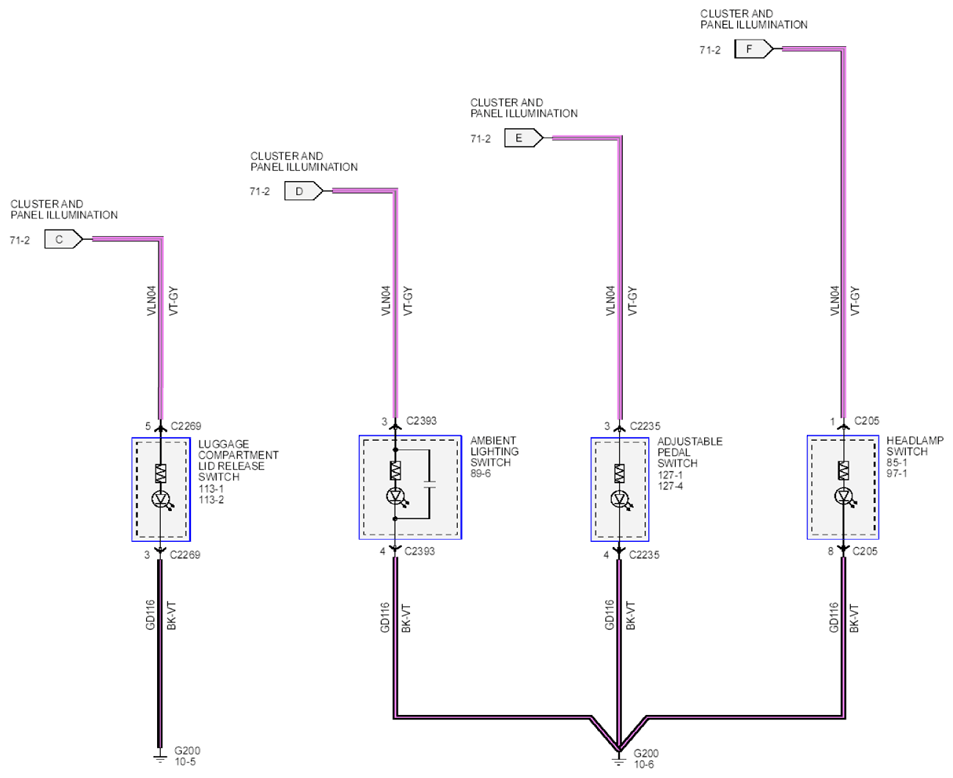

Fig 3: Cluster And Panel Illumination Circuit Diagram (3 Of 4)
G07882243Courtesy of FORD MOTOR CO.

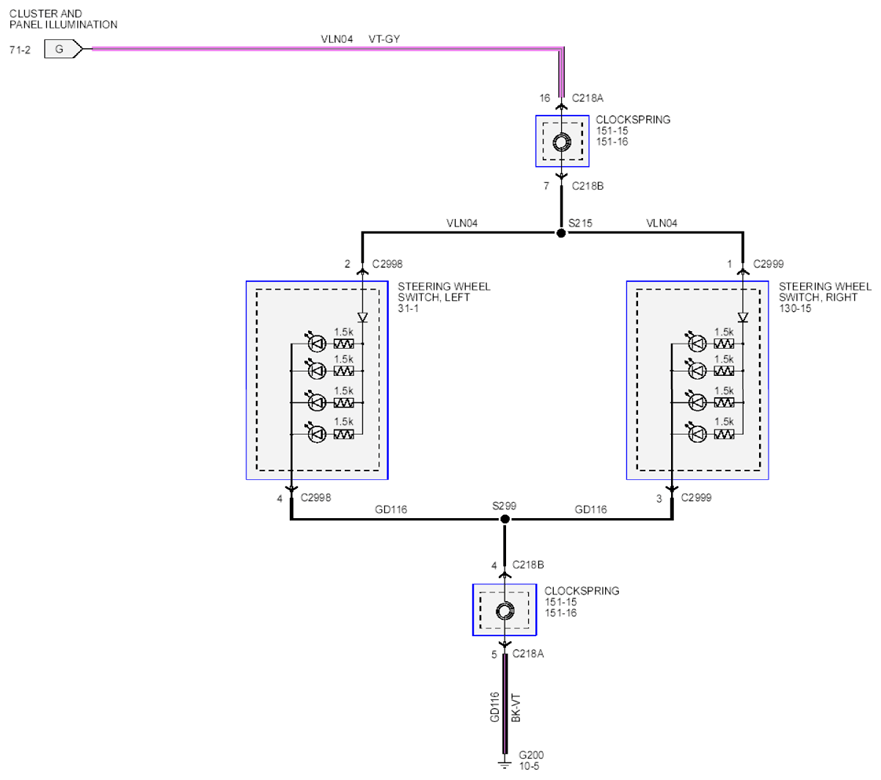

Fig 4: Cluster And Panel Illumination Circuit Diagram (4 Of 4)
G07882244Courtesy of FORD MOTOR CO.
