Passenger Safety Belt Buckle Switch / Safety Belt Buckle Pretensioner Connector - C3066

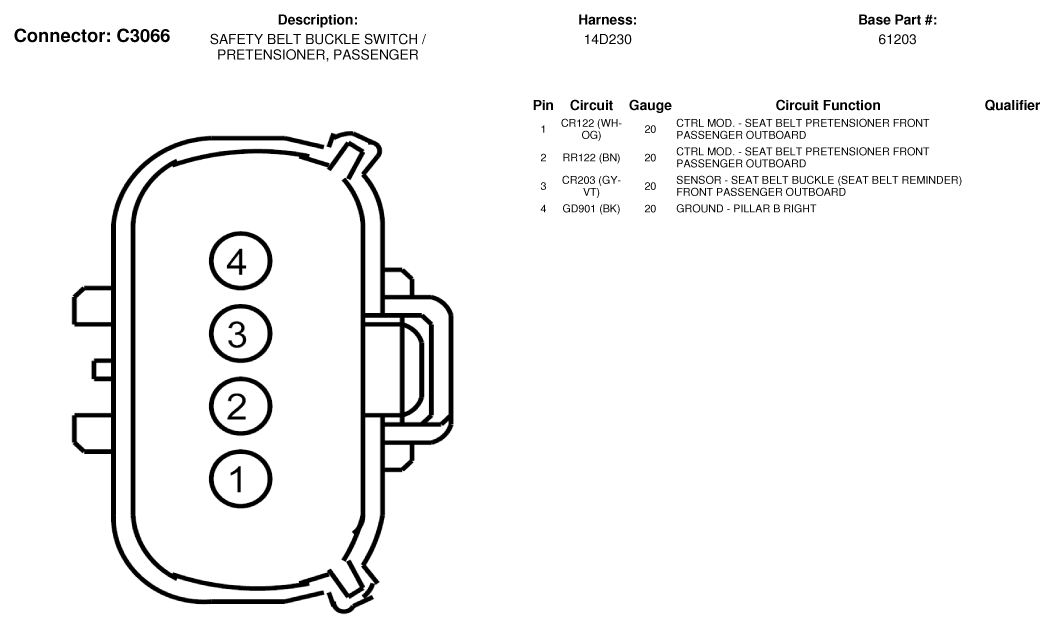

Fig 1: Passenger Safety Belt Buckle Switch / Safety Belt Buckle Pretensioner Connector End View (C3066)
G07340158Courtesy of FORD MOTOR CO.
