Seat Cushion Heater Mat - Rear: Installation

Install new cushion heater mats onto a new cushion foam pad.
1. Position a cushion heater mat onto the cushion foam pad so the opening aligns to the clips in the cushion foam pad.
2. Tuck the cushion heater mat into the cushion foam pad trenches.
3. Make sure the cushion heater mat stays in place, remove the paper strips from under the cushion heater mat and adhere to the cushion foam pad, laying it flat with no wrinkles.
4. Route the cushion heater mat wire harness and electrical connector through the cushion foam pad to the other side.

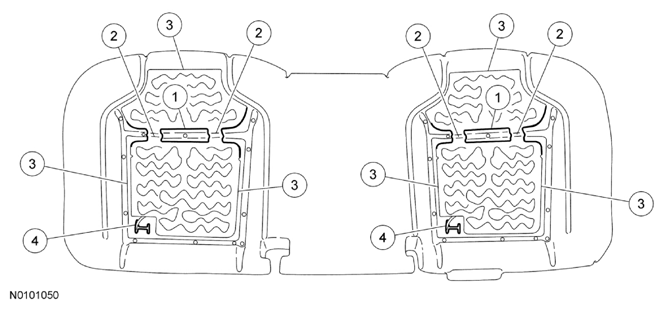

  Fig 1: Identifying Seat Cushion Heater Mat Components - Rear
  Courtesy of FORD MOTOR CO.
Install and connect the cushion wire harness and heated seat module.
Install the rear seat cushion cover. For additional information, refer to SEAT CUSHION COVER - REAR in this service information.
