Seat Cushion - Front, Massage: Removal

Remove the seat. For additional information, refer to SEAT - FRONT in this service information.
From the front of the seat, detach the wire harness retainer and disconnect the seat control switch electrical connectors.

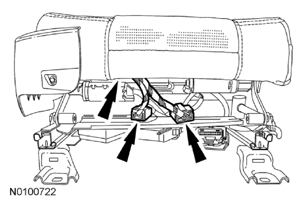

Fig 1: Locating Seat Control Switch Electrical Connectors And Wire Harness Retainer
Courtesy of FORD MOTOR CO.

NOTE: Note hose routing for correct installation.

Fig 2: Locating Carpet Flap Toe-Kick Retainers

Courtesy of FORD MOTOR CO.

Detach the carpet flap toe-kick retainers from under the seat.
Remove the cushion side shield.
1. Remove the screw at the back.
2. Remove the scrivet at the back.
3. Remove the screw at the front.
4. Pull out at the side to release the 3 clip retainers.
5. Slide down, separate the hook and remove the cushion side shield.
6. Disconnect the memory SET switch electrical connector (if equipped).

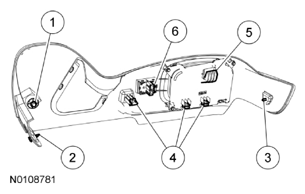

  Fig 3: Identifying Cushion Side Shield, Screws, Scrivets And Retaining Clips
  Courtesy of FORD MOTOR CO.
Separate the hoses.
- Push the 4 release buttons in and disconnect the 4 hoses.
- Detach the hose retainer.

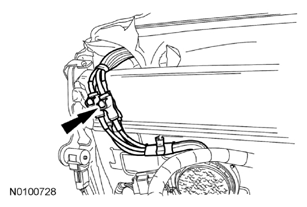

  Fig 4: Locating Hose Retainer
  Courtesy of FORD MOTOR CO.
Detach the cushion cover J-clips at the front and outboard sides.
Position the cushion foam pad away and detach the cushion massage pin-type retainers.

Fig 5: Locating Cushion Massage Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Route the cushion massage assembly hoses through the cushion support wires and remove the assembly.

Fig 6: Locating Cushion Massage Assembly Hoses
Courtesy of FORD MOTOR CO.
