Retainer and Connector Location View, Front of Seat

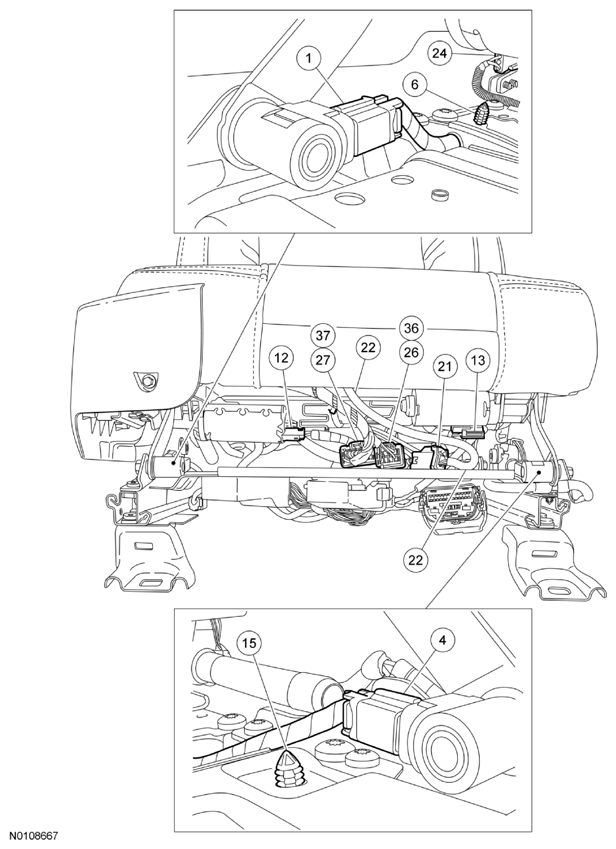

Fig 1: Identifying Wiring Harness Retainer And Connectors - Front Of Seat

G07812477

Courtesy of FORD MOTOR CO.
