Seat Backrest - Frame Parts With Manual Lumbar and Static Lumbar

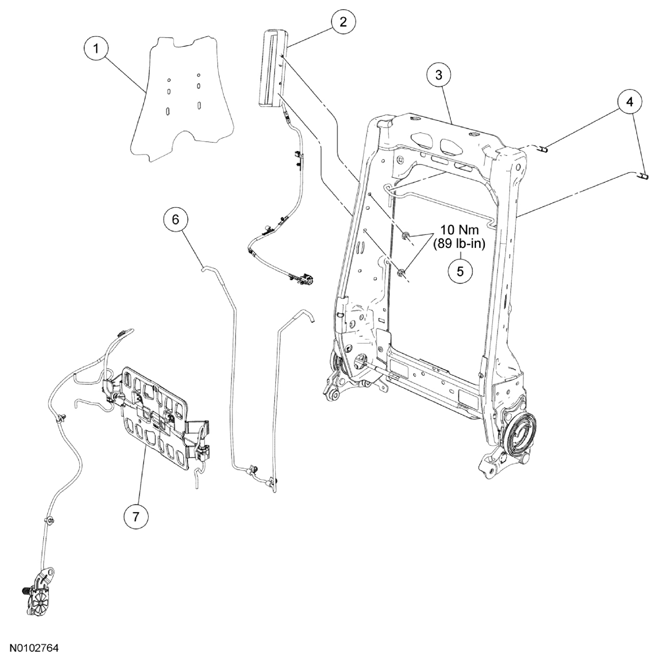

Fig 1: Exploded View Of Front Seat Backrest Components With Torque Specifications - Frame Parts With Manual Lumbar And Static Lumbar
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 610E38 | Deployment chute |
| 2 | 611D10 | Side air bag module |
| 3 | 61018 | Backrest frame |
| 4 | W790133 | Clips (if equipped) (2 required) |
| 5 | W520111 | Side air bag module-to-backrest frame nuts (2 required) |
| 6 | 64842 | Static lumbar (if equipped) |
| 7 | 65500 | Manual lumbar adjust assembly (if equipped) |
