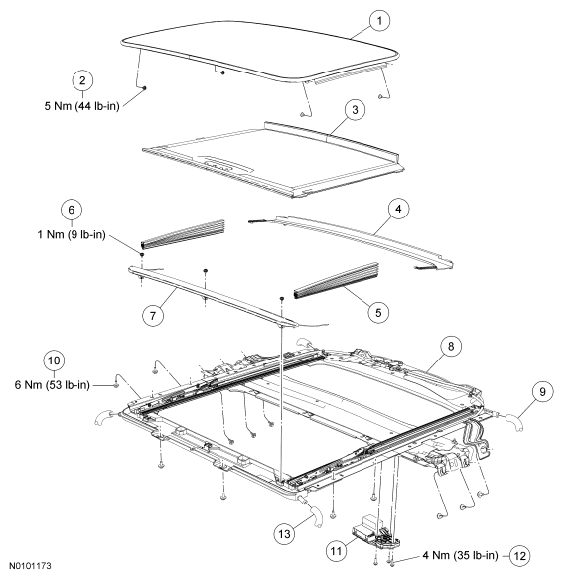

Roof Opening Panel - Exploded View
NOTE:
The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel system, including: whenever the roof opening panel motor has been removed from the roof opening panel system, the roof opening panel glass has been removed from the roof opening panel system, the roof opening panel assembly has been removed from the vehicle, a new roof opening panel motor has been installed, a new roof opening panel glass has been installed or a new roof opening panel assembly has been installed. For additional information, refer to ROOF OPENING PANEL MOTOR INITIALIZATION
.
| Item | Part Number | Description |
|---|---|---|
| 1 | 500A18 | Roof opening panel glass |
| 2 | - | Roof opening panel glass screw (4 required) |
| 3 | 500A66 | Roof opening panel shield |
| 4 | 7854022 | Roof opening panel trough |
| 5 | - | Concertina blinds (2 required) |
| 6 | - | Air deflector assembly screw (3 required) |
| 7 | 500A26 | Air deflector assembly |
| 8 | 502B98 | Roof opening panel frame |
| 9 | 54502C53 | Rear drain hose (2 required) |
| 10 | W702928 | Roof opening panel frame bolt (12 required) |
| 11 | 15790 | Roof opening panel motor |
| 12 | - | Roof opening panel motor screw (3 required) |
| 13 | 54502C52 | Front drain hose (2 required) |
- For additional information, refer to the appropriate procedures in this service information .
