Defective insulation stripping

1 = Proper crimp

2 = Insulation not removed

3 = Wire strands missing

4 = Intermittent signals through pierced insulation

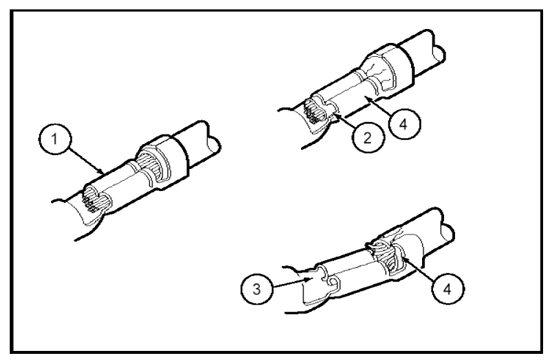

Fig 1: Identifying Defective Insulation Stripping (Example)

Courtesy of FORD MOTOR CO.
