Parking, Rear and License Lamps
>>
With Auxiliary Park Lamps
With Auxiliary Park Lamps

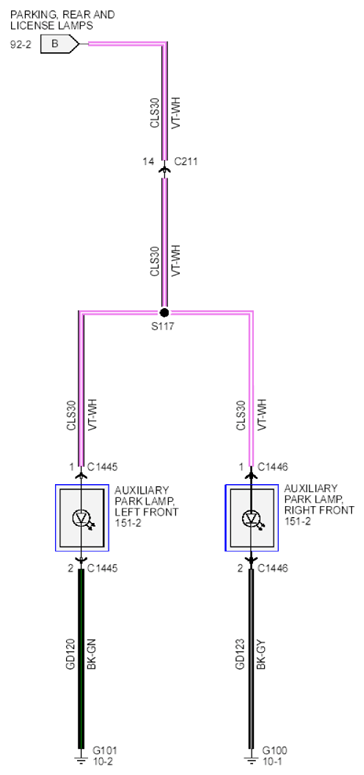

Fig 1: Parking, Rear And License Lamps Circuit Diagram (With Auxiliary Park Lamps)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
