Taurus Limited, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Hid Headlamps
>>
With Auto High Beams
With Auto High Beams

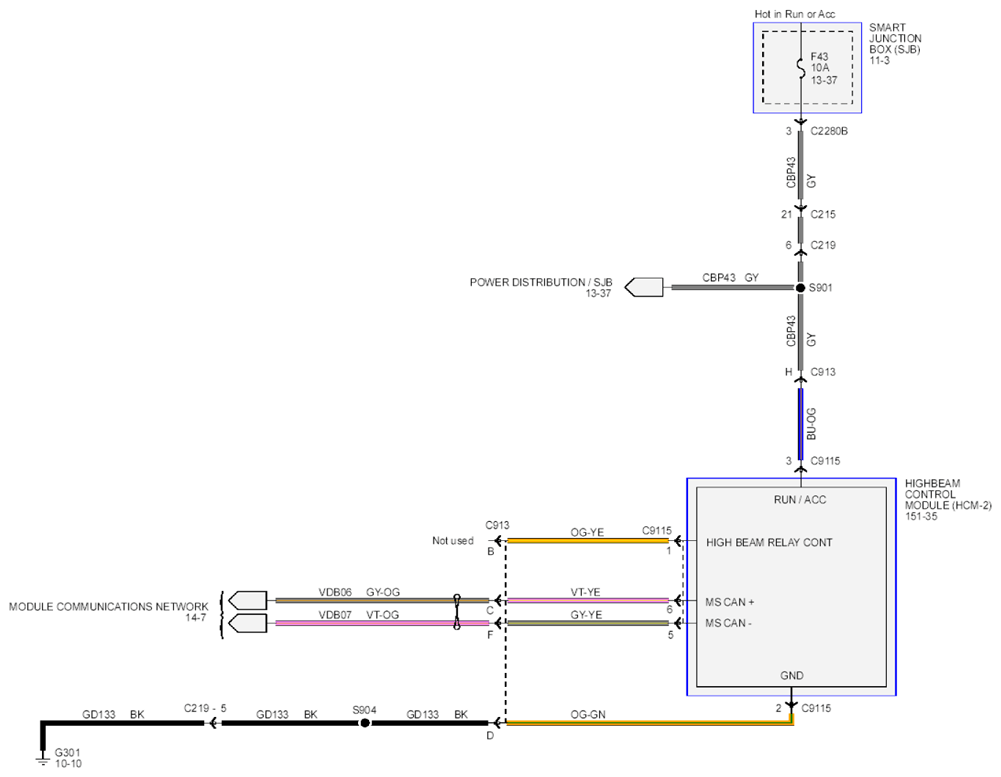

Fig 1: Module Communications Network Circuit Diagram (With Auto High Beams)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
