Halogen Headlamps - Without DRL

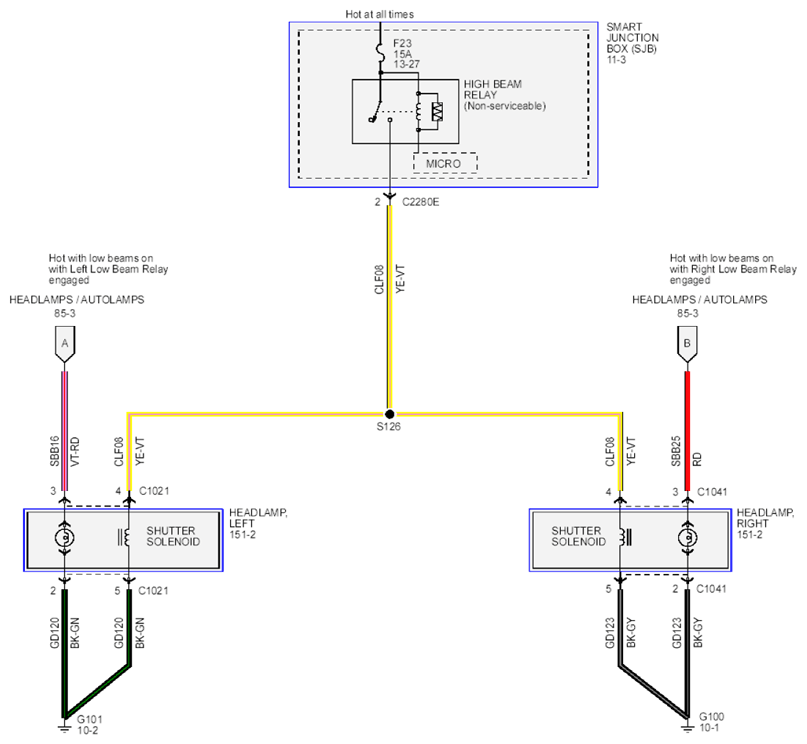

Fig 1: Halogen Headlamps Circuit Diagram - Without DRL

G07882251

Courtesy of FORD MOTOR CO.
