Crankshaft Rear Seal: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the flexplate. For additional information, refer to FLEXPLATE  .
  3. Remove the crankshaft sensor ring.
  4. Using the Crankshaft Rear Oil Seal Remover and Slide Hammer, remove and discard the crankshaft rear seal.
    • Clean all sealing surfaces with metal surface prep.

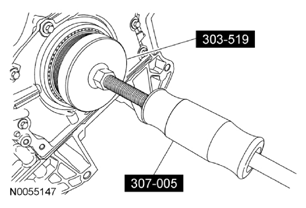

      Fig 1: Removing Crankshaft Rear Seal Using Crankshaft Rear Oil Seal Remover And Slide Hammer
      G07806502Courtesy of FORD MOTOR CO.
