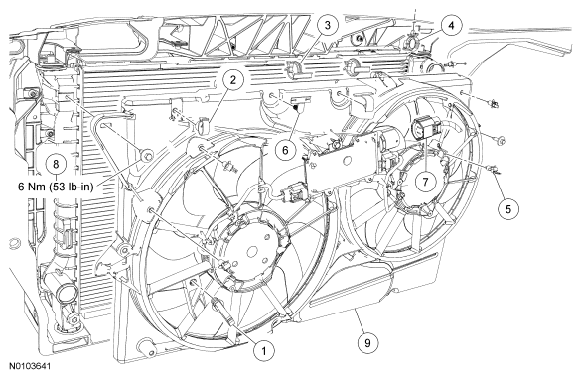

Cooling Fan and Shroud (View 3 of 3)
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Lower radiator hose retainer (part of 8B273) |
| 2 | 8C607 | Hood release cable retainer |
| 3 | 14A163 | Block heater wiring harness retainer (part of 6B018) (2 required) |
| 4 | 13A506 | Wiring harness retainer (part of 14290) |
| 5 | 13A506 | Wiring harness retainer (part of 14290) (5 required) |
| 6 | 13A506 | Wiring harness retainer (part of 14290) (2 required) |
| 7 | 14A464 | Cooling fan electrical connector (part of 14290) |
| 8 | W503924 | Cooling fan and shroud bolt (2 required) |
| 9 | 8C607 | Cooling fan and shroud |
