Cooling Fan and Shroud (View 1 of 3)

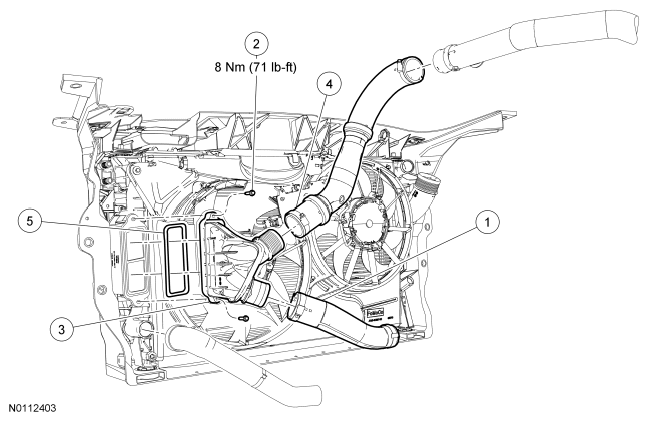

Fig 1: Cooling Fan And Shroud Replacement Components With Torque Specifications (View 1 Of 3)
G06542253Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6C646 LH Charge Air Cooler (CAC) tube
2 - CAC adapter bolt (part of 9M434) (2 required)
3 9M434 CAC adapter
4 6C646 RH CAC tube
5 9M436 CAC adapter gasket
