Coolant Inlet Pipe (View 2 of 2)

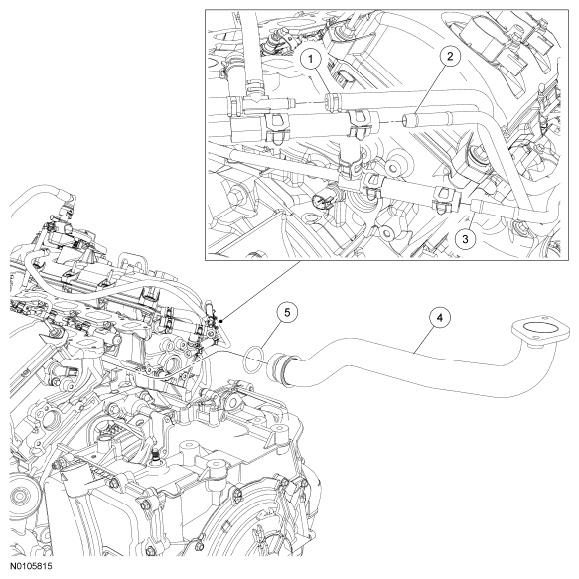

Fig 1: Coolant Inlet Pipe Replacement Components With Torque Specifications (View 2 Of 2)
G06258613Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8A521 Turbocharger wastegate regulating valve hose
2 8A505 LH turbocharger coolant inlet tube (part of 9V427)
3 9E498 LH turbocharger coolant outlet tube (part of 8K579)
4 9N271 Coolant inlet pipe
5 8565 Coolant inlet pipe O-ring seal
