Parking, Rear and License Lamps: Notes

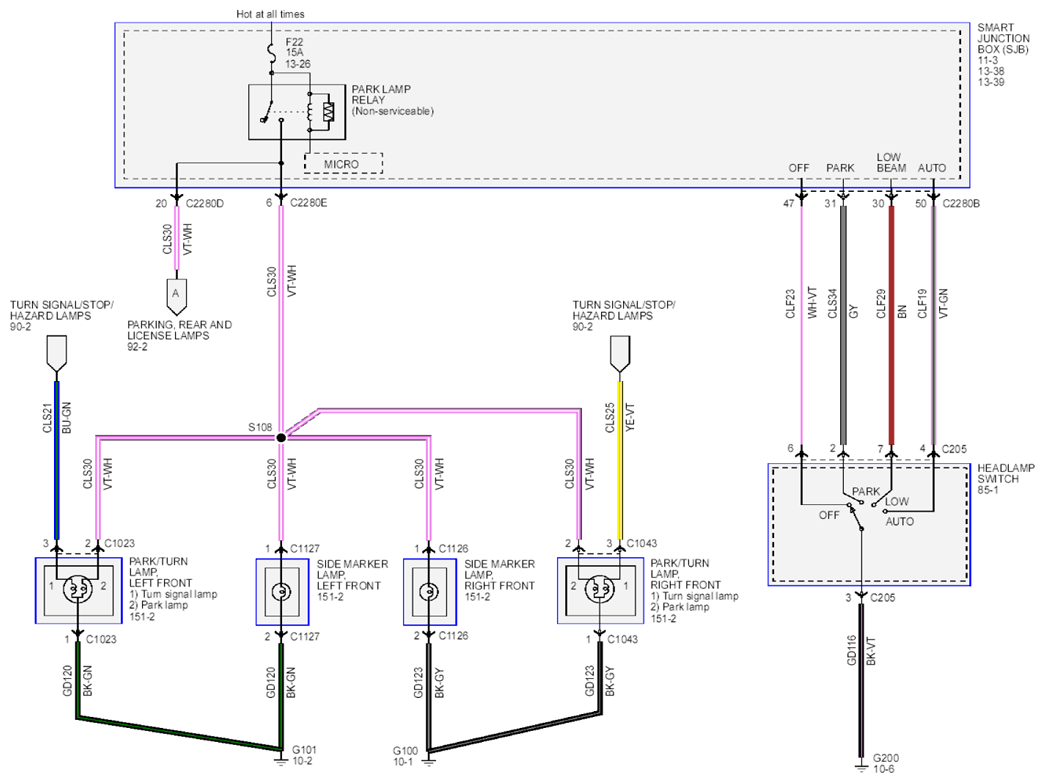

Fig 1: Parking, Rear And License Lamps Circuit Diagram (1 Of 2)
G07882273Courtesy of FORD MOTOR CO.

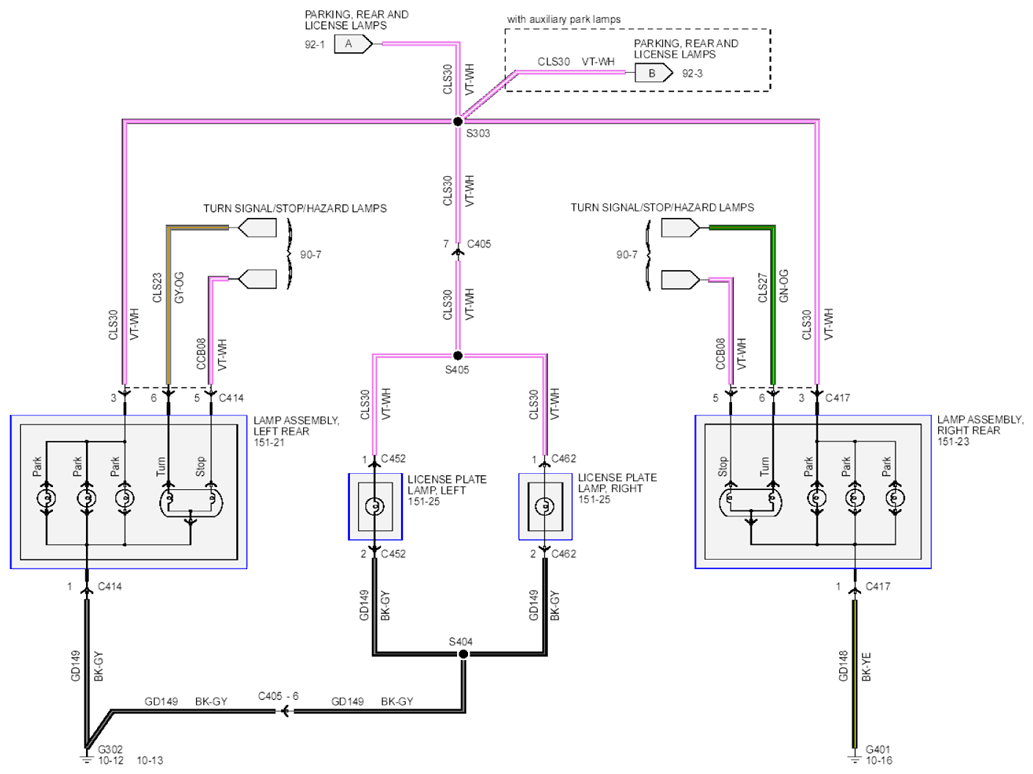

Fig 2: Parking, Rear And License Lamps Circuit Diagram (2 Of 2)
G07882274Courtesy of FORD MOTOR CO.
