Home >> Ford >> 2011 >> Taurus Limited, AWD >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams >> Hid Headlamps >> With Automatic A/C

With Automatic A/C

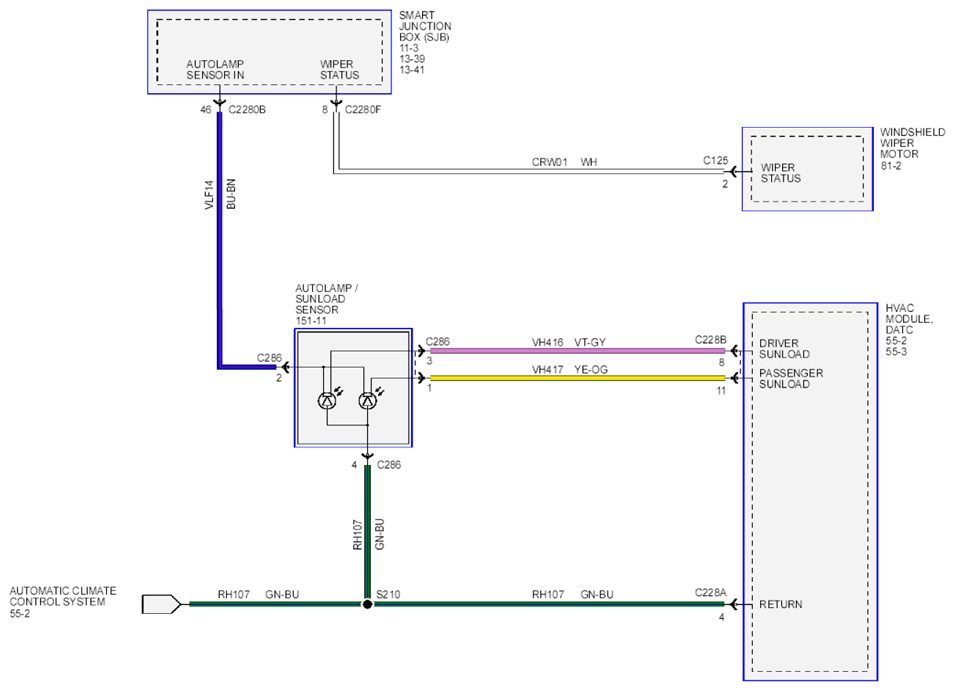

Fig 1: Automatic Climate Control System Circuit Diagram (With Automatic A/C)

G07882255

Courtesy of FORD MOTOR CO.
