OEM Wiring Diagrams: Headlamps_Autolamps

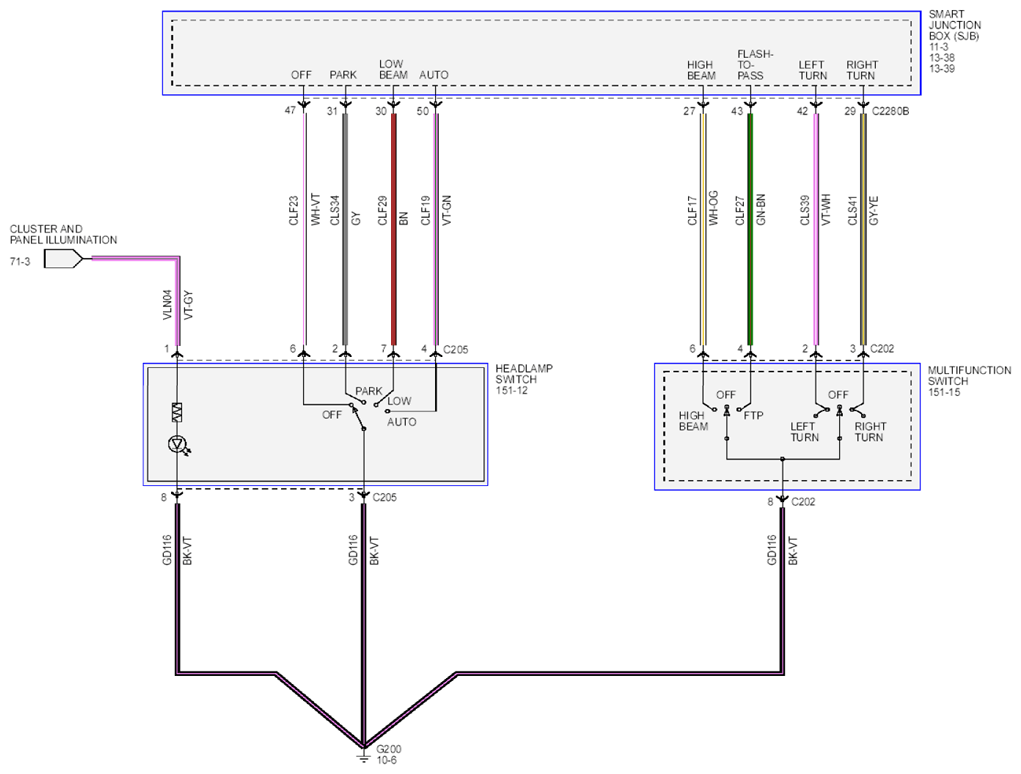

Fig 1: Headlamps Autolamps Circuit Diagram

G07882248

Courtesy of FORD MOTOR CO.
