Taurus Limited, AWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Wiring Harness Overview
>>
G302
Wiring Harness Overview: G302

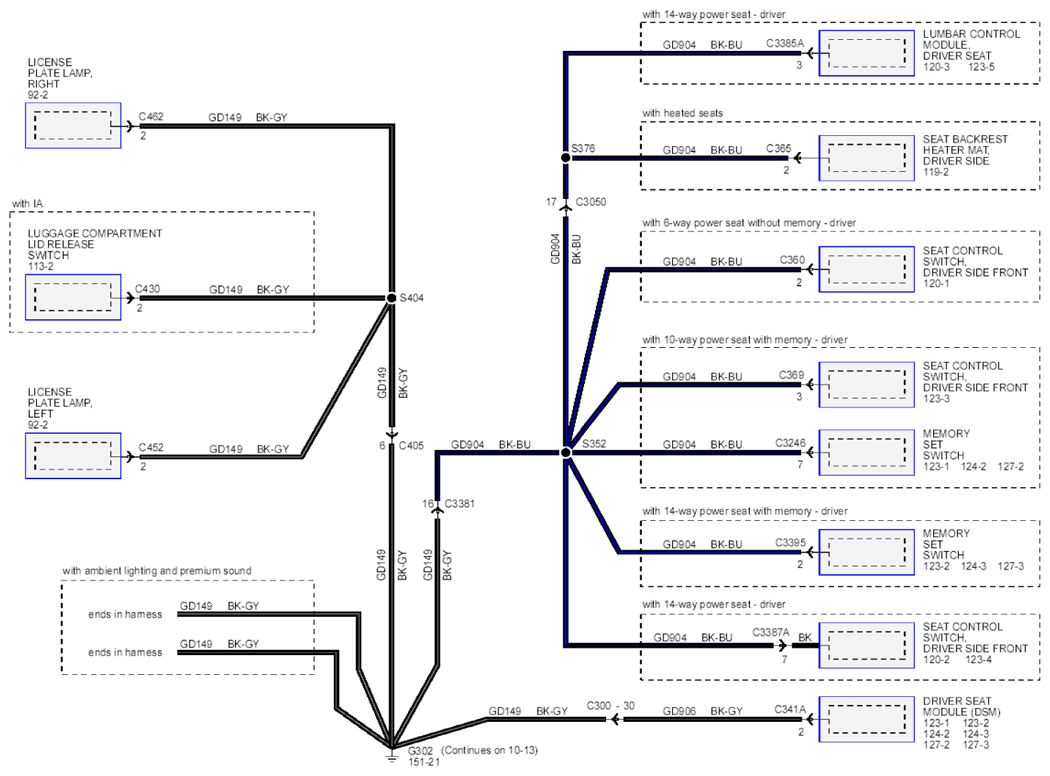

Fig 1: Ground Circuit Diagram - G302 (1 Of 2)
Courtesy of FORD MOTOR CO.

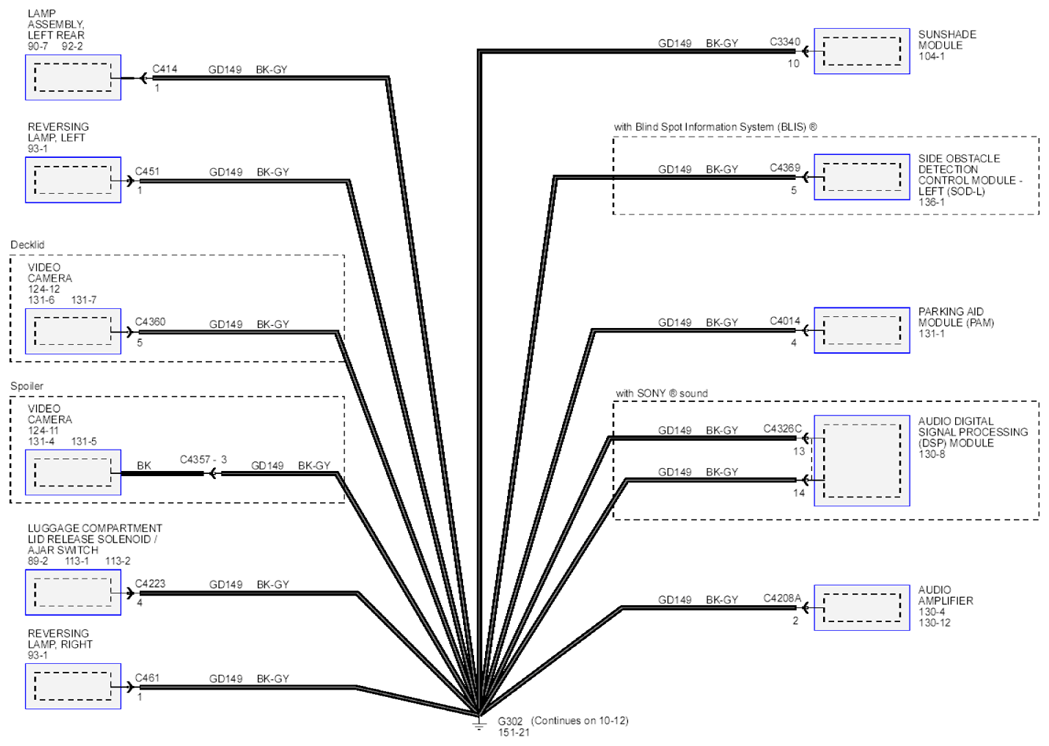

Fig 2: Ground Circuit Diagram - G302 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
