Transmission Controls - 6 Speed
>>
Without Adaptive Cruise
Without Adaptive Cruise

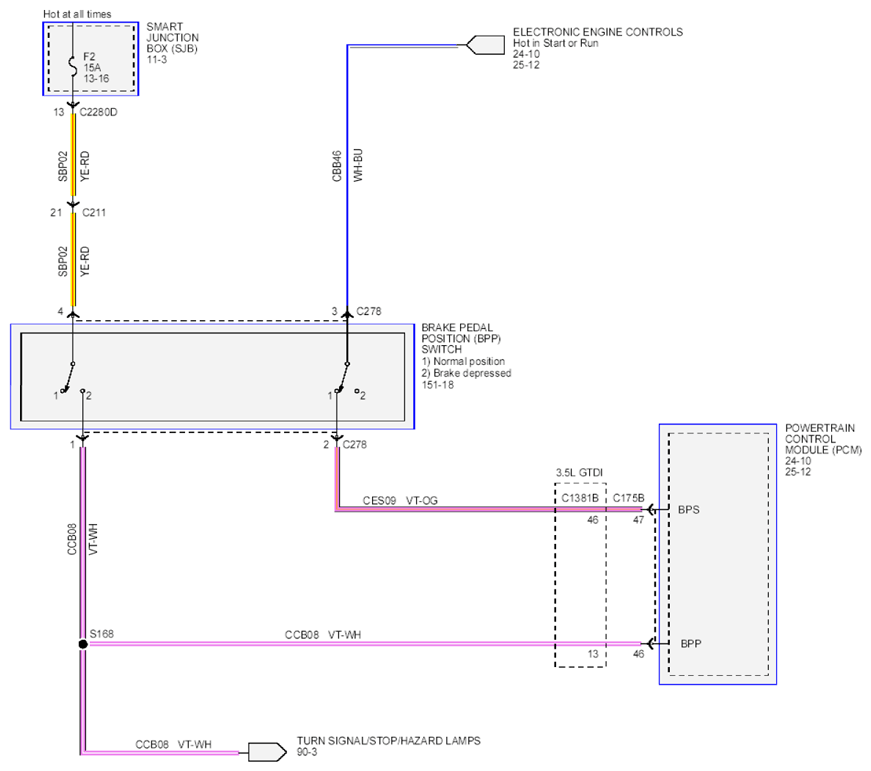

Fig 1: Cruise Control Circuit Diagram (Without Adaptive Cruise)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
