3.5 L GTDI

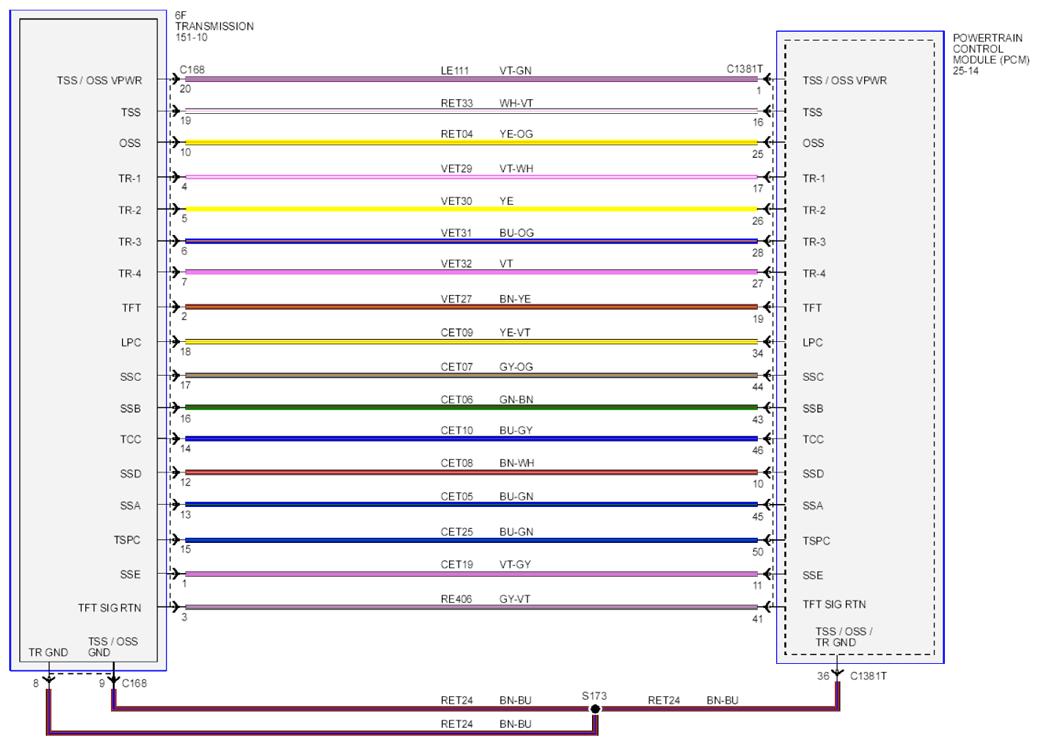

Fig 1: 6 Speed Transmission Control Circuit Diagram - 3.5L GTDI (1 Of 3)
G07882197Courtesy of FORD MOTOR CO.

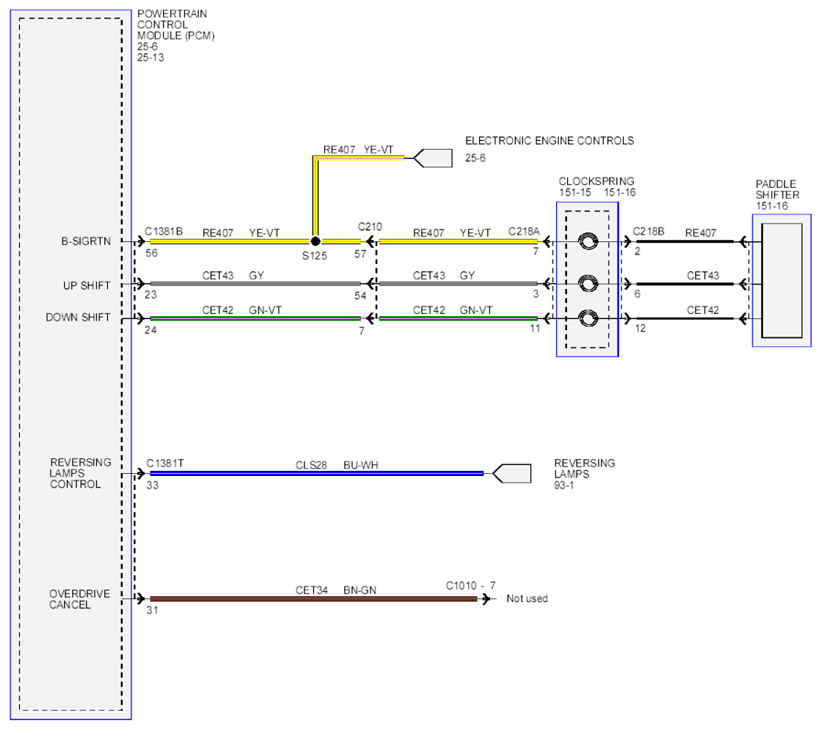

Fig 2: 6 Speed Transmission Control Circuit Diagram - 3.5L GTDI (2 Of 3)
G07882198Courtesy of FORD MOTOR CO.
Fig 3: 6 Speed Transmission Control Circuit Diagram - 3.5L GTDI (3 Of 3)
G07882199Courtesy of FORD MOTOR CO.
