Horn_Cigar Lighter
Horn_Cigar Lighter

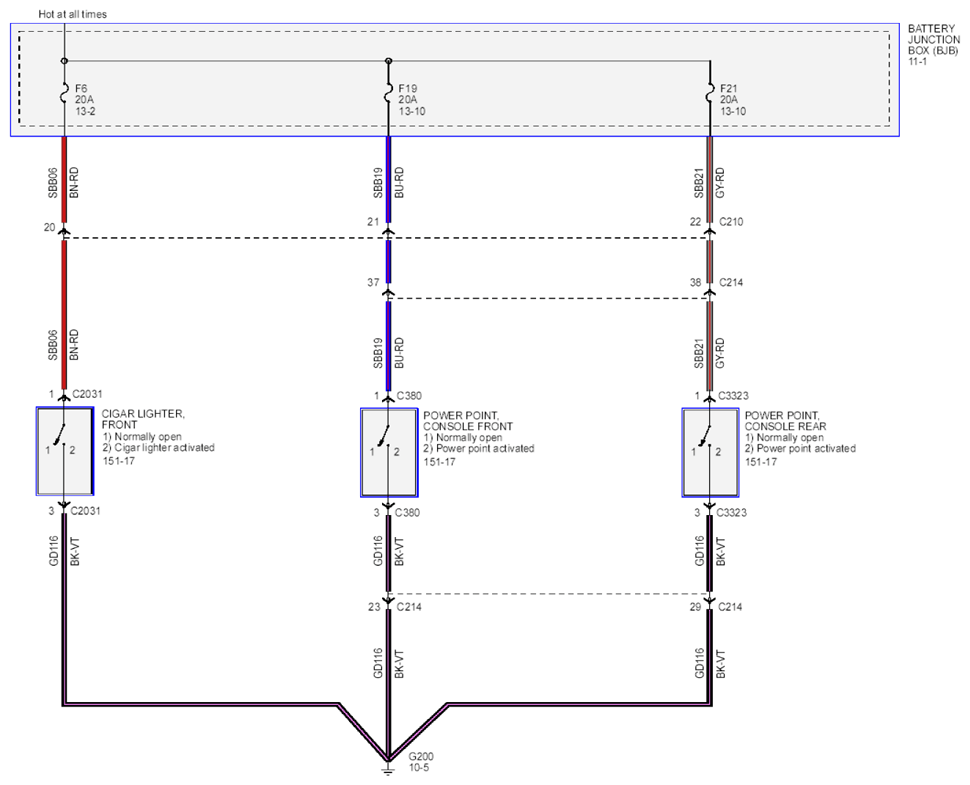

Fig 1: Horn Cigar Lighter Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

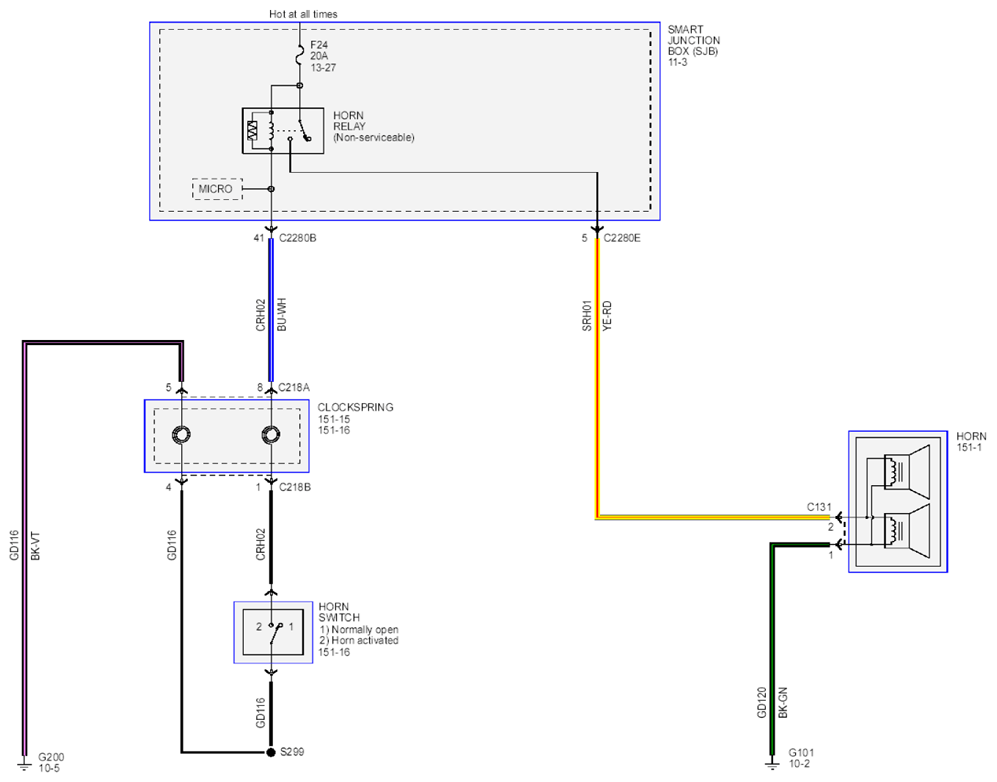

Fig 2: Horn Cigar Lighter Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
