Cooling Fan

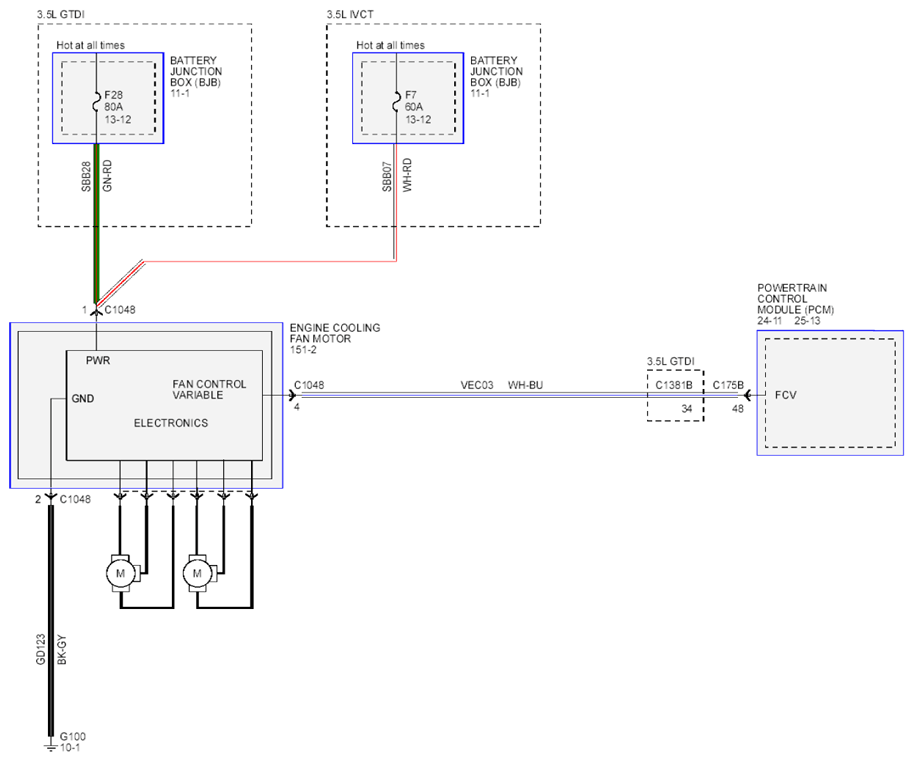

Fig 1: Cooling Fan Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
