With Rear Heated Seats

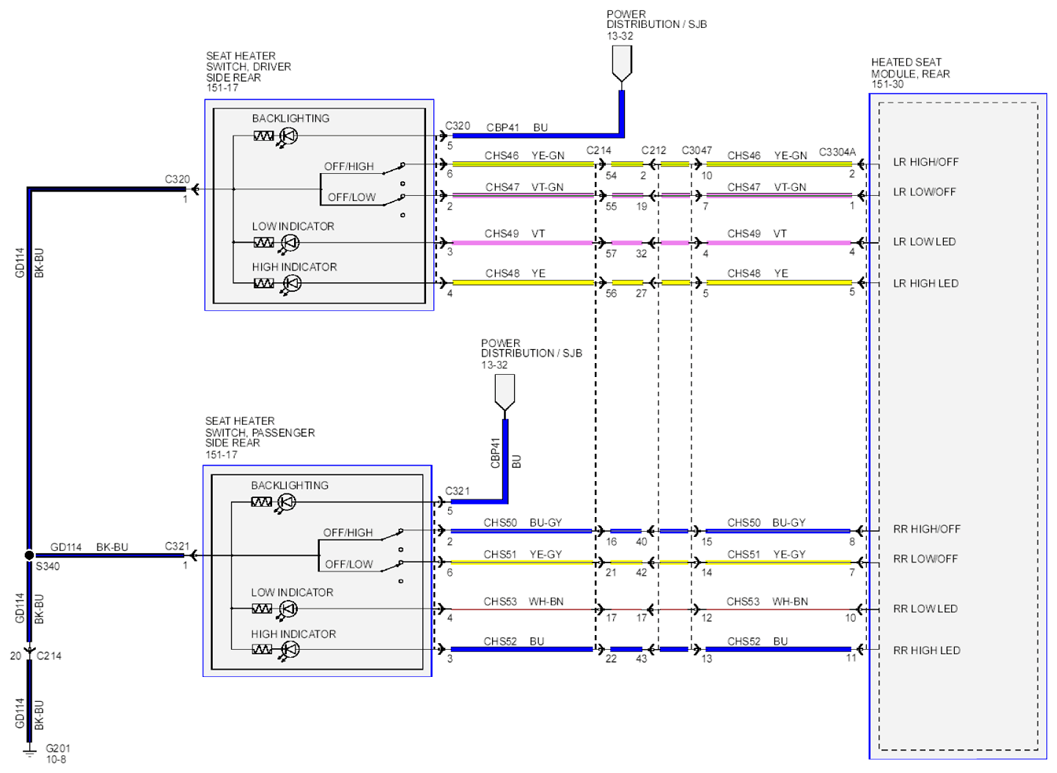

Fig 1: Climate Controlled Seats Circuit Diagram - With Rear Heated Seats (1 Of 2)
G07882322Courtesy of FORD MOTOR CO.

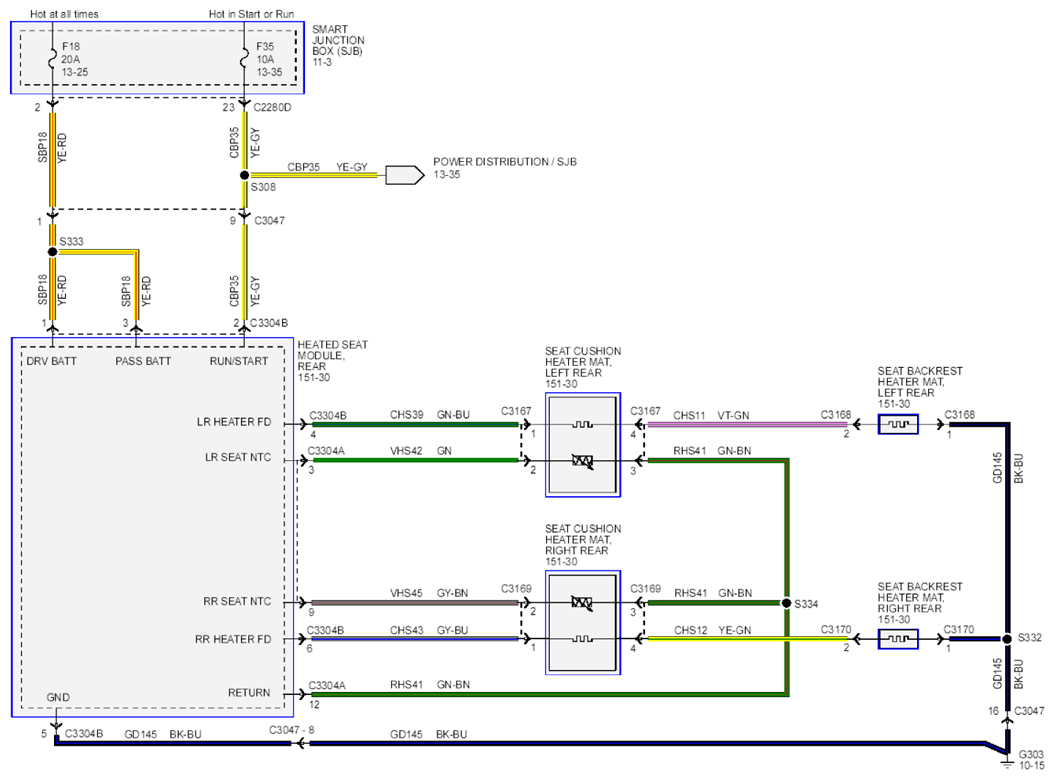

Fig 2: Climate Controlled Seats Circuit Diagram - With Rear Heated Seats (2 Of 2)
G07882323Courtesy of FORD MOTOR CO.
