Passenger Side Seat Cushion Thermo-Electric Device Connector - C3040

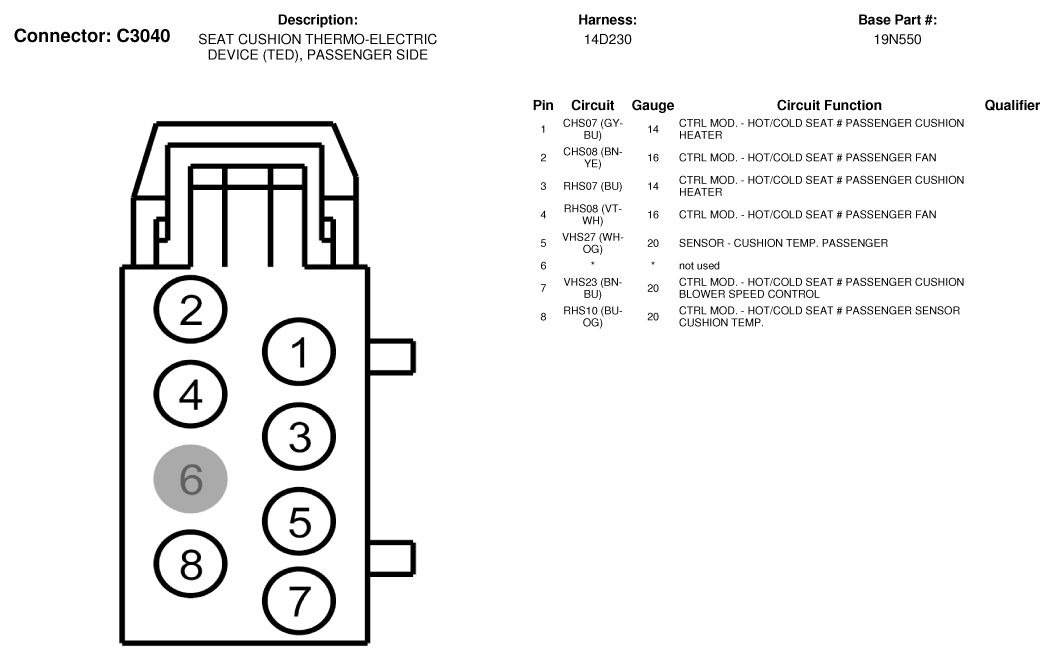

Fig 1: Passenger Side Seat Cushion Thermo-Electric Device Connector End View (C3040)

G07340151

Courtesy of FORD MOTOR CO.
