Removal and Installation

From under the front of the cushion assembly, push the 2 cushion floor latch release levers toward the driver side, while lifting up to disengage the front of the cushion assembly.

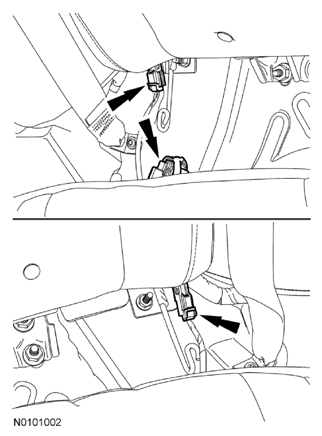

Fig 1: Pushing Cushion Floor Latch Release Lever
Courtesy of FORD MOTOR CO.

NOTE: RH electrical connectors on top, LH on bottom.

Remove the cushion assembly in the following sequence.
1. Push the cushion back as far as possible.
2. Lift up and pull forward at the rear outboard ends of the cushion, disengaging the wires from the retainer hooks.
3. Disconnect the heated seat electrical connector(s) (if equipped).
4. Remove the cushion.

  Fig 2: Locating Heated Seat Electrical Connectors
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Before installation, make sure the safety belts and buckles are accessible to the occupants.
