Removal and Installation

NOTE: LH shown in illustration, RH similar.

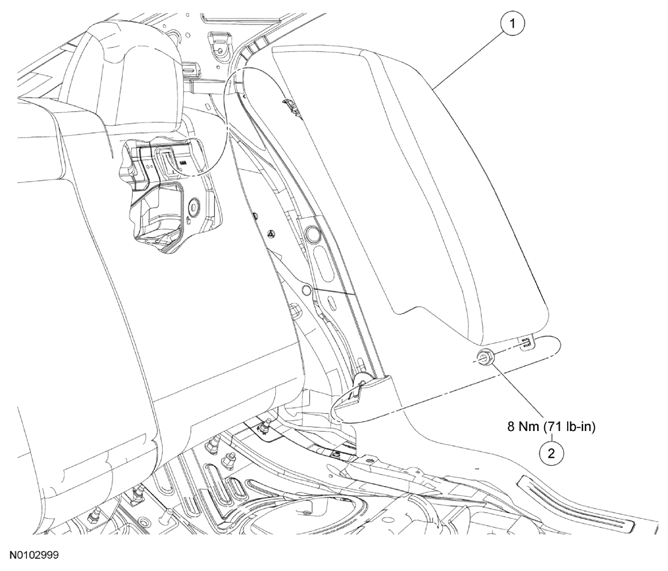

Fig 1: Seat Bolster Replacement Components With Torque Specifications - Rear

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Backrest bolster
2	-	Bolster nut

Bolsters having been previously removed

Remove the nut from the lower retainer stud.
- To install, tighten to 8 Nm (71 lb-in).
All bolsters
Pull the rear door scuff plate up at the front and separate from the B-pillar trim panel.
At the same time, separate the seat bolster at the bottom and rear door scuff plate at the rear from the stud. Remove the scuff plate.
Slide the seat bolster down and remove.
To install, reverse the removal procedure.
- When installing the seat bolster, install a M6 x 1.0 nut on the lower retainer stud.
  - To install, tighten to 8 Nm (71 lb-in).
