Cushion Side Shield - Power Seat Track With Manual Recline and Manual Lumbar (6-Way Power)

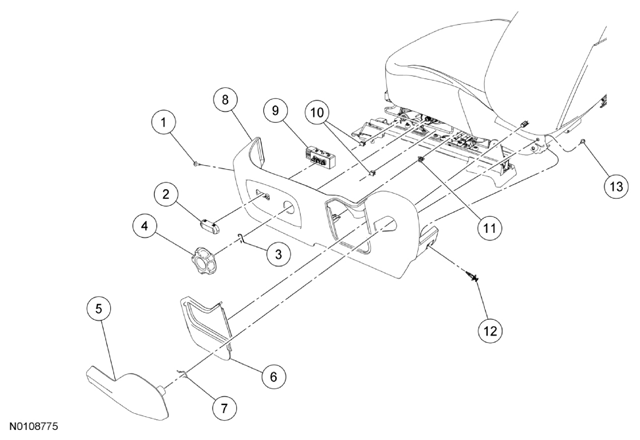

Fig 1: Exploded View Of Front Seat Components - Cushion Side Shield (Power Seat Track With Manual Recline And Manual Lumbar (6-Way Power))
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W505153 | Screw |
| 2 | 14711 | Seat track control knob |
| 3 | W790123 | Manual lumbar handle clip |
| 4 | 62622 | Manual lumbar handle |
| 5 | 61199 | Manual recliner handle |
| 6 | 61693 | Cushion side shield cover |
| 7 | W790163 | Manual recliner handle clip |
| 8 | 62187 | Cushion side shield |
| 9 | 14A701 | Seat control switch |
| 10 | W713010 | Cushion side shield retainers (2 required) |
| 11 | W703895 | Cushion side shield retainer |
| 12 | W710752 | Scrivet |
| 13 | W506841 | Screw |
