Seat Cushion - With Massage and Heat

NOTE: Refer to SEAT BACKREST - FRONT in this service information for recliner-to-seat track bolt tightening sequence and torque specification.

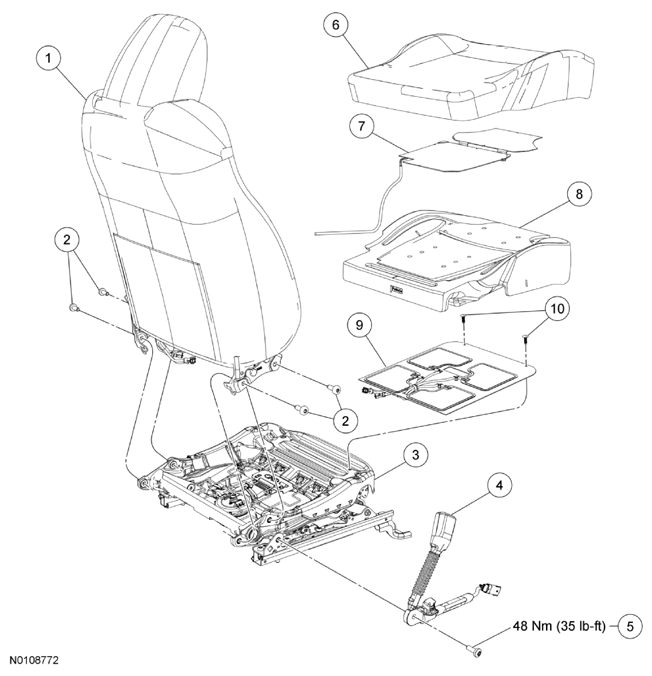

Fig 1: Exploded View Of Seat Cushion Components With Torque Specifications - With Massage And Heat

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Backrest assembly
2	W707385	Recliner-to-seat track bolts (4 required)
3	61711	Seat track
4	61203	Safety belt buckle and pretensioner
5	W712978	Safety belt buckle and pretensioner bolt
6	62901	Cushion cover
7	14D696	Cushion heater mat (if equipped)
8	632A23	Cushion foam pad
9	603A99	Seat cushion massage assembly (if equipped)
10	W706676	Pin-type retainers (if equipped) (2 required)
