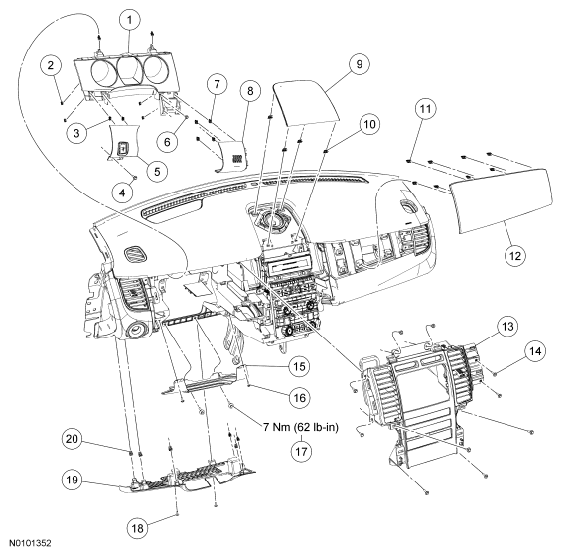

| 1 |
044D70 |
Instrument cluster finish panel |
| 2 |
W714086 |
Instrument cluster finish panel retaining clip (6 required) |
| 3 |
- |
LH instrument panel finish panel retaining clip (part of 044L54) (2 required) |
| 4 |
W707628 |
LH instrument panel finish panel screw |
| 5 |
044L54 |
LH instrument panel finish panel |
| 6 |
W707628 |
Instrument cluster finish panel screw |
| 7 |
- |
In-vehicle temperature sensor cover retaining clip (part of 042D90) (4 required) |
| 8 |
042D90 |
In-vehicle temperature sensor cover |
| 9 |
04405 |
Instrument panel upper cover |
| 10 |
- |
Instrument panel upper cover retaining clip (part of 04405) (4 required) |
| 11 |
- |
RH instrument panel finish moulding retaining clip (part of 04268) (8 required) |
| 12 |
04268 |
RH instrument panel finish moulding |
| 13 |
04302 |
Center instrument panel finish panel |
| 14 |
W707628 |
Center instrument panel finish panel screw (10 required) |
| 15 |
017A26 |
Instrument panel reinforcement plate |
| 16 |
N808453 |
Instrument panel reinforcement plate screw (2 required) |
| 17 |
N807316 |
Instrument panel reinforcement plate bolt (2 required) |
| 18 |
N808453 |
Steering column opening trim panel screw (2 required) |
| 19 |
044F08 |
Steering column opening trim panel |
| 20 |
- |
Steering column opening trim panel retaining clip (part of 044F08) (6 required) |
