B103D

Seats

DTC Charts

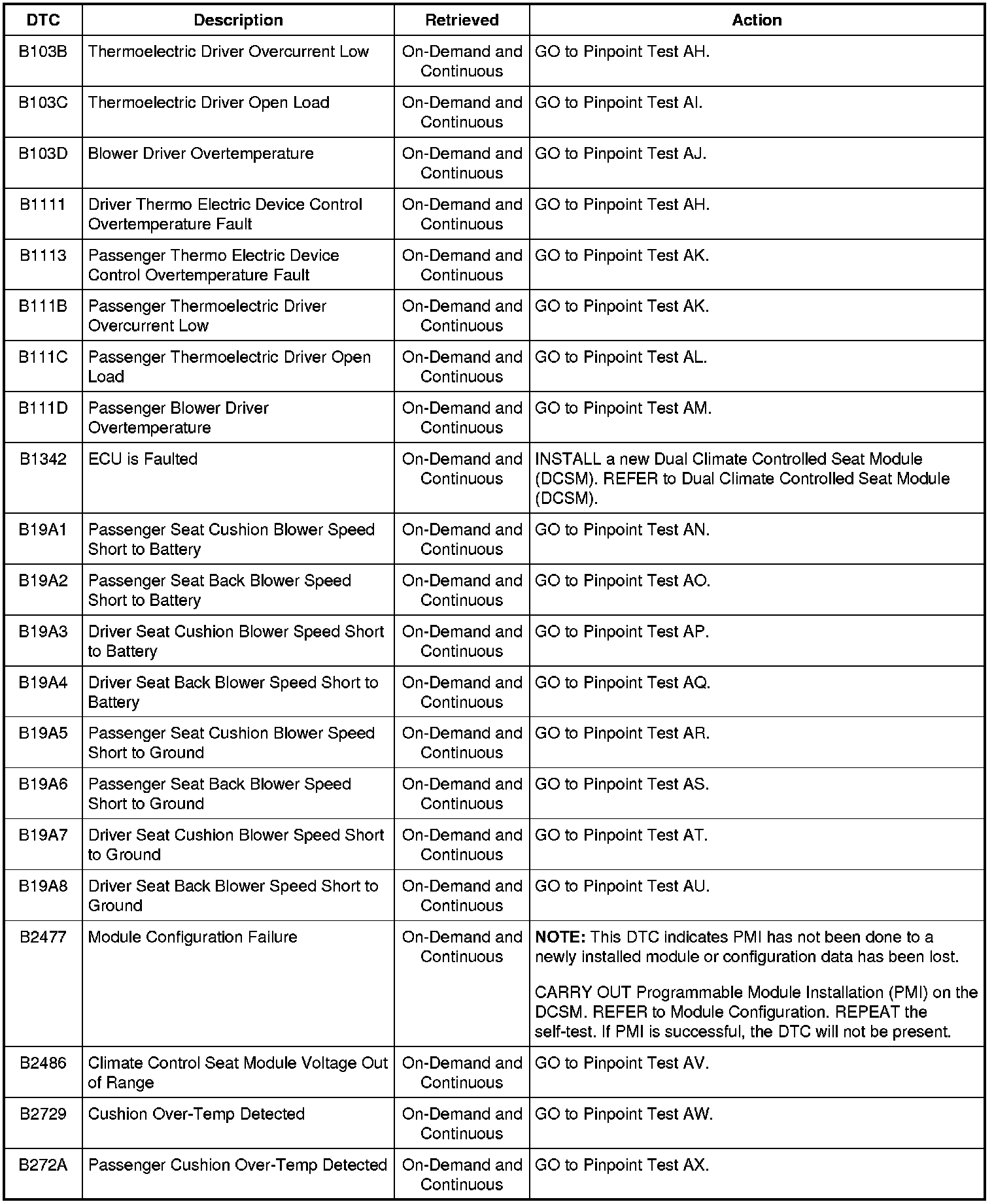

Dual Climate Controlled Seat Module (DCSM) DTC Chart

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition states (ignition OFF, ignition in ACCESSORY, ignition ON, ignition START) on vehicles with this feature.
