Wheel Speed Sensor - Front

Wheel Speed Sensor - Front









Removal and Installation

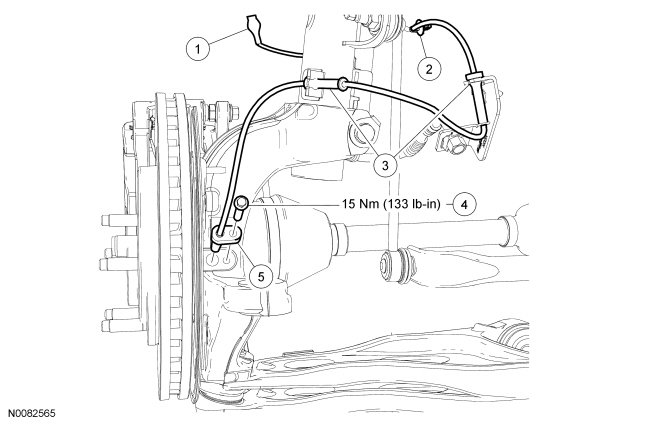

1. Remove the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the 2 scrivets and position aside the fender splash shield.

4. Remove the wheel speed sensor harness pin-type retainer.

5. Remove the 2 wheel speed sensor harness retainers.

6. Remove the bolt and the wheel speed sensor.
- To install, tighten to 15 Nm (133 lb-in).

7. To install, reverse the removal procedure.
