Luggage Compartment Lid Release Switch - Exterior




Luggage Compartment Lid Release Switch - Exterior

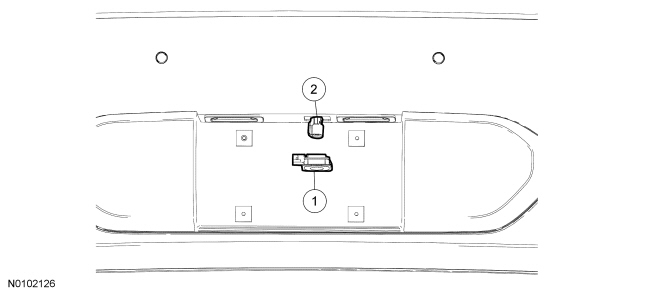

Removal and Installation

1. Remove the rear bumper cover. For additional information, refer to Bumpers Service and Repair.

2. Disconnect the luggage compartment lid release switch electrical connector.

3. Press the tab and remove the exterior luggage compartment lid release switch.

4. To install, reverse the removal procedure.
