Heads Up Display Unit: Service and Repair

Head Up Display (HUD) Module









Removal and Installation

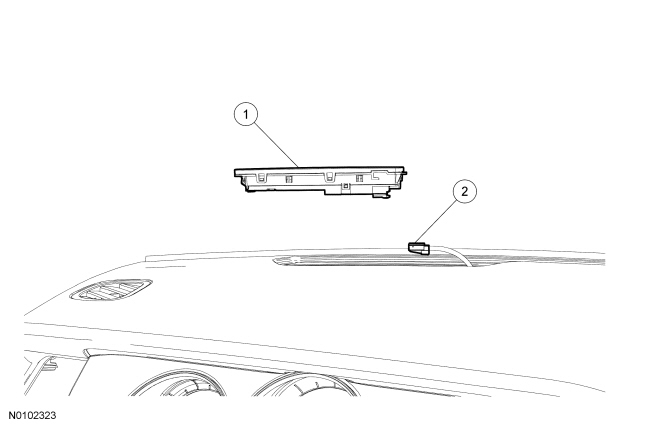

1. Gently pry with a suitable tool (such as a small flat-blade screwdriver) on the LH side of the Head Up Display (HUD) module to release it from the instrument panel upper section.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
