Transmission Cooler: Description and Operation

Transmission Cooling

This vehicle with an automatic transmission is equipped with a transmission fluid cooler integral to the radiator and cannot be repaired separately. The integral transmission fluid cooler transfers heat from the transmission fluid to the engine coolant. The auxiliary transmission fluid cooler transfers heat from the transmission fluid to outside air.

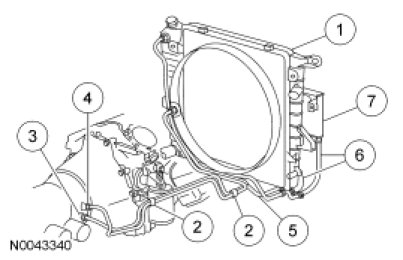

Transmission Cooling Components - 2.3L

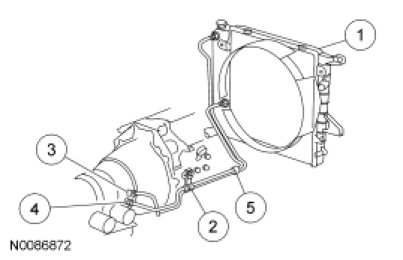

Transmission Cooling Components - 4.0L
